Concrete Block Making Machine Qt4-15 Semi-Automatic Brick Machines in Zambia

Product Description

QT4-15 Semi-autoamtic brick making machine production line
Product Description
1.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.The machine can produce hollow block,solid block,paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.
4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.
Product Parameters

Dimension	2800x1570x2600mm
Weight	4500KG
Pallet Size	960x630mm
Power	19.9KW
Mode of Vibration	Table Vibration
Vibration Frequency	4200r/min
Vibration Force	70KN
Cycle Time	15-25sec

Production Capacity:

Block Type	Picture	Size(L x W x H)	Pcs./Pallet	Pcs./Hour	Pcs./8 Hours

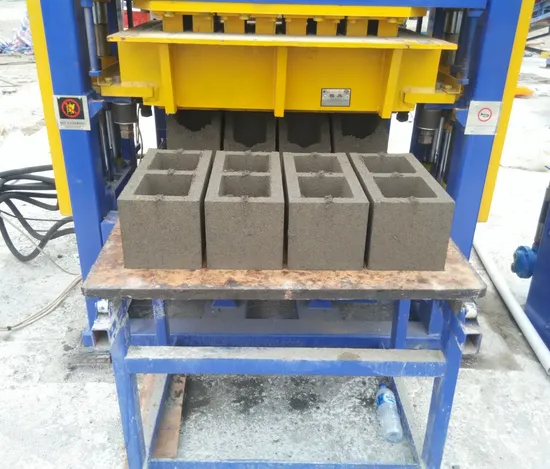

Hollow Block		390x190x190mm	4	625	5000
Hollow Block		390x150x190mm	5	780	6240
Hourdi Block		530x160x195mm	5	780	6240
Stock Brick		220x110x70mm	20	4500	36000
Paving Block		200x100x60mm	16	2300	18400
Paving Block		225x112.5x60mm	14	2000	16000

Block sample: 1,Hollow blocks:For high building,house,villa,wall and so on.
2,Solid blocks:For high building,house,villa,wall,park,road and so on.
3,Paving blocks:For park,road,invironment grow grass so on.
4,Interlocking blocks:For park,garden,road,house decoration and so on.
5,Curb stone:road side.
Company Profile
Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is located in Renhe Industrial Park, Gaotang County, Shandong Province. It is one of the large manufacturers specializing in the production of non-burning brick machines.
Our company was founded in 2004. After more than ten years of development, from an annual output of more than a dozen small brick machines to an annual output of hundreds of large brick machine production lines, Huatong now covers an area of 65000 square meters and a construction area of 19000 square meters. It has modern production workshops and office facilities, complete machine tools, heat treatment, rust removal and shot blasting equipment, and welding equipment, and has gathered a large number of senior technical and management personnel. There are 4 senior engineers, there are 8 engineers, more than 60 talents with college education or above, and more than 600 technicians of various types.
Packaging & Shipping
The whole block making machine line could load in one 40'f container,except this,it could load 900pieces pallets.
We can load the block making machine to your countries port,then you can let your forwarder to clear custom and transport to your place,its easy to operate.
Befor sale service:
1,We will supply the block making machine specification.
2,Show how to operate the machine.
3,Could supply the block samples disign drawing.
4,Tell our customer the international business operation procedure.
5,24h E-mail and call service.
Different countries customers work site:
After Sales Service
1,Our technician is available to overseas service,guide installation and help training the workers.
2,24h E-mail and call service.
3,One year guarantee time.
ISO certificate:
Specifications of JS500 Concrete Mixer:

Charging Capacity (L)		800	Discharging Capacity(L)	500
Maximum Production(m3/h)		25	Aggregate Maxi Diameter(mm)	80mm
Mixing Blade	Speed(r/min)	35	Mixing Motor(kw)	18.5
	Quantity	27	Hoist Motor(kw)	5.5
Water Pump Motor(kw)		0.75	Discharging Mode	Manual/ Pneumatic
Discharging Height(m)		1.5/2.7/3.8	Weight (kg)	4000
Transport Dimension		3030x2300x2680	Working Dimension (mm)	4486x3030x5280

We warmly welcome your enquiry,asking any questions,we will do our best to buy the best quality machine with lower price.

---
