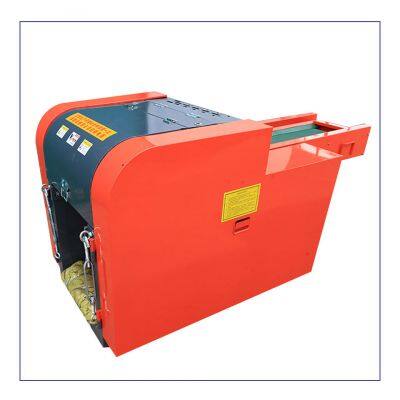

Textile Fabric Waste Cutting Machine
UBT Series Rotary Twisting Knife Fiber Cutting Machine (also known as rag machine, chopped cutter, thread chopping machine, cloth rag machine, cloth rag machine, etc.). This machine abolishes the traditional reciprocating straight knife plate, and applies the oblique-rotating rolling knife and the fixed knife to move the cutting design to achieve continuous high-speed cutting. Product design, beautiful appearance, economical and practical, sensitive control, neat cutting.
1、The machine adopt international leading the knob and type rolling knife and the fixed knife suit some mobile shear design; to achieve continuous high-speed shearing;
2、Advanced product design; beautiful appearance; economic and practical; control sensitive; shear agile throughly;
3、It can quickly cut up all kinds of waste pieces; cotton waste yarn; cotton; chemical fiber; waste clothing; flax; leather; plastic film; paper; trademark brand; non-woven fabrics and other waste materials; the chopped material size uniformity; length arbitrary adjustable;
4、Convenient to move; stable and reliable; easy maintenance; high production efficiency; can solve a lot of manual labor chop cut;
Work principle of Rag Cutting Machine
(1).Put the material uniform on the input conveyor belt ,and it will be send into the first-hand pressure roller automatically,
(2). The material is pressed preliminary and sent into the second pressure roller and will be sent out by the relative operation pressure roller and be cut by the continuously rotating blade .
(3).The cutting material falls in the hopper and is sent out by the output conveyor belt .
The material was chopped uniform size, the length is adjustable.
Device parameters
Model
| Form a complete set of power
| Design production
| Input with
| The output with
| The thickness of the shear
|
UBT800
| 5.5+1.5KW
| 300-500kg/h
| 1400x350mm
| 1400x350mm
| 1-50mm
|
UBT1200
| 11KW+2.2 kw
| 500-800kg/h
| 3000x520mm
| 3000x520mm
| 1-50mm
|
UBT1600
| 18.5KW+2.2+1.5 kw
| 1500-2000kg/h
| 3000x720mm
| 3000x720mm
| 1-50mm
|
UBT2400
| 11KW*2+2.2+1.5 kw
| 2000-3000kg/h
| 3000*1100mm
| 3000*1100mm
| 1-50mm
|
UBT3600
| 30*2+7.5+4.0+1.5 kw
| 3000-5000kg/h
| 3000*1500mm
| 3000*1500mm
| 1-50mm
|
