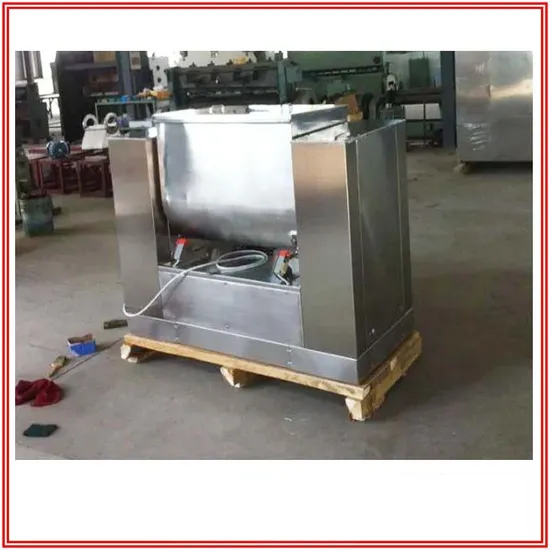

Horizontal Double Trough Shaped Food Grade Mixing Machine 100L/Batch

US$1,757.00-18,678.00 1 Piece (MOQ)

Basic Info.

Model NO.
CH-300
Application Area
Chemical, Food
Certification
API, CCC, CE, GOST, ISO, SONCAP
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Mixing Capacity
250-500L
Speed Control
Dual Speed
Speed Range
< 30 R/min
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
High Speed Mixer
Name
Ribbon Mixer
Other Name
Trough Mixer
Material
Stainless Steel
Industry of Application
Checmial or Pharma Powder
Capacity
100kg
Working Volume
100L
Machine Structure
Trough Mixer
Mixing Time
6-15minutes
Power
5.5kw
Dry or Wet
Dry
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating Type
Cycle Operating
Transport Package
Wooden Case
Specification
CE SGS SONCAP
Trademark
ck
Origin
China
HS Code
8479820090
Production Capacity
200sets Per Month

Product Description


Mixer introduction
CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.
Groove mixer for mixing powder or paste material, so that the different quality of material mixed. Is a horizontal trough single paddle mixing, stirring paddle was shaking through the shaft, easy to clean. Contact with the object of the whole made of stainless steel, it has good corrosion resistance, mixing tank can automatically flip down to discharge the material.
Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter

capacity(L)
100 150 200 400
power of motor(kw) 2.2 3 3 5.5
speed of stirring(rpm) 24 24 24 24
inclined(×) 105 105 105 105
weight(kg) 350 500 650 1200
overall dimensions(mm) 1400×500×1000 1600×600×1100 1800×700×1200 2000×820×1460

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
