Steel Laser Engraving Machine Laser Marking Machine for Auto Parts, Bicycles Parts, Wheel Hub, Vin Number

Product Description

Customized Fiber Laser Marking Machine for Auto Parts, Bicycles Parts Wheel Hub/Rim/Vin Number
Product features:

Items Picture	Main Features
	Double Head Online Laser marking Machine for Wheels Laser Source(Generator): Fiber Laser Composition 2 sets of laser marking system (3D galvanometer under the line body, 2D galvanometer on the side of the line body), electric two-axis adjustment structure on the side of the line body, electric path adjustment mechanism under the line body, power transmission roller, roller table surface positioning mechanism Appliaction Field On-line laser marking of wheels, automatic online marking of internal and external rims, no need manual move, flip and position, greatly reducing the work intensity of the operator, improving production efficiency and marking quality.
	Internal rim laser marking machine Laser Source(Generator): Fiber Laser Composition Laser marking system, with splitter, and rotary table for positioning tooling, protective cover, safety barrier Appliaction Field Rotary marking on inner rim of the wheel. The laser head is installed under the center hole of the rotary table (does not affect the loading and unloading). After the wheel is positioned, the marking is started. The laser head rises from the center hole to a certain height, to the top of the rotating table, and the marking is segmented according to the pre-set marking content.

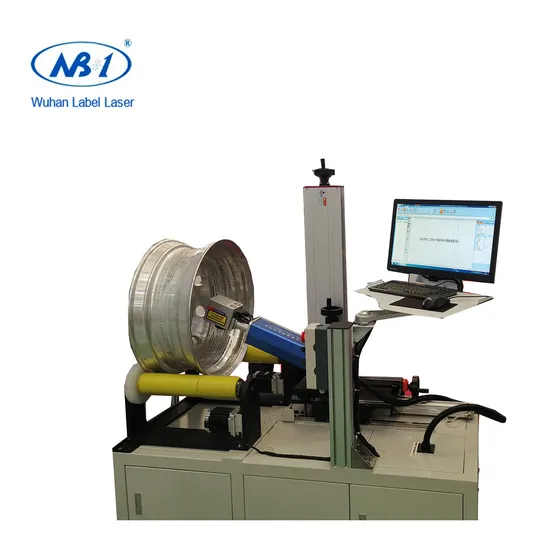

	Laser Source(Generator): Fiber Laser Composition Laser marking system, optical path main beam bracket, adjustable angle positioning tooling, workbench. Appliaction Field The forged aluminum wheel is marked with a deep mark at the rim. It can meet the needs of rim marking for different specifications (angles). High-power lasers are used to meet their unique depth requirements.

Automobile wheel hub laser marking machine is a special marking machine specially developed by our company for the automobile wheel hub industry. It does not need to manually handle the wheel hub, making the marking process more efficient, safe and reliable.
Composition and working principle of automobile wheel hub laser marking machine
The machine comprises a frame, a roller table line, a blocking device, a wheel hub height measuring grating, a servo electric lifting device, a central clamping and rotating device, a laser marking device, a one-dimensional code recognition camera, a two-dimensional code reading camera and an opposite sensor; The roller shaft is installed on the frame for conveying the hub; The material blocking device and the wheel hub height measuring grating are installed at the entrance of the roller table line, and blocking device is used to block the wheel hub to be marked; The hub height measuring grating is used to detect the hub height; The servo electric lifting device is installed on the top of the frame; The centering clamping rotating device is installed at the lower end of the servo electric lifting device; The laser marking device is installed below the roller table line; The one-dimensional code identification camera is installed on the frame; The two-dimensional code reading camera is installed on the laser marking device; The radiation sensor is installed on both sides of the frame. Characteristics of wheel hub laser marking machine 1. The scheme is mainly applied to the marking of automobile aluminum alloy wheel hub;
2. Hub size: 16 "- 26"
3. Marking content: number, letter, logo, serial number, date, two-dimensional code, one-dimensional code, etc
4. Marking position: mark the inner rim with the valve core as the benchmark and mark the contents below the valve core; Mark the outer rim and mark the two-dimensional code on the opposite side based on the valve core
5. The text size can be adjusted according to requirements
6. The marking text depth is within 0.3mm
7. Marking range: meet the requirements of hub marking content and text format
8. Marking method: optical fiber laser marking
Application field of wheel hub laser marking machine
It is widely used in on-line laser marking of wheels. The inner and outer rims are marked automatically online without manual moving, turning and positioning, which greatly reduces the work intensity of the operator and improves the production efficiency and marking quality.
The forged aluminum wheel shall be engraved with a depth mark at the rim. It can meet the marking requirements of rim with different specifications (angles). High power laser is selected to meet its unique depth requirements. Technical parameters of wheel hub laser marking machine

Laser Type	Fiber Laser
Model No.	LBZY-100
Laser Power	100W
Wavelength	1064nm
Frequency	100~200KHz,Continuously adjustable
Marking Range	200*200mm(Maximum arc length 180mm)
Working Distance	215mm
Repeat position precision	±0.001mm
Minimum Character	0.3mm
Marking Depth	≤0.3mm(It depends on the processing time and process mode)
Stability of continuous output energy	<0.03%
Maximum pulse energy	1MJ
Fiber Length	2m
Maximum power consumption	1.5KW
Working Temperature	5ºC~35ºC
Operating ambient temperature	-5ºC~40ºC
Relative Humid	0-90%(Condensation is not allowed)
Cooling Method	Air cooling
Life Span	100,000 hours

Marking samples with hub laser marking machine List of optional accessories Computer: carry out visual operation and control the marking software to better complete the marking action. Rotary fixture: it mainly solves the difficult machining requirements of complex workpieces at different angles, and has the functions of plane marking, circular arc surface and circular rotation marking. Double excitation head: 3D galvanometer is equipped under the line body, and 2D galvanometer is equipped on the side of the line body to realize double head marking on the inner and outer rims of the wheel hub at the same time. Laser: different types of lasers with different power can be selected according to different requirements for engraving depth and rim marking at different angles. Electric lifting column: the button controls the automatic lifting of the optical path to avoid the trouble of manual operation. Auto focus: it can automatically adjust the focal length and realize automatic tracking and marking even if there is slight difference in thickness. Packing detail
Company Profile
Wuhan Label Laser Company has been specialized in researching and manufacturing industrial laser marking equipments, laser welding machine, laser cleaning machine for customers since 2006.
With over 19 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-know customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.
Why choose us
A. More than 19 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.

B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?

Our fiber laser machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
