Desktop Double Y-Axis Soldering Robot with Camera and Display

Product Description

----Desktop Robotic Screw Fastening
----Soldering robot & Dispenser Robot

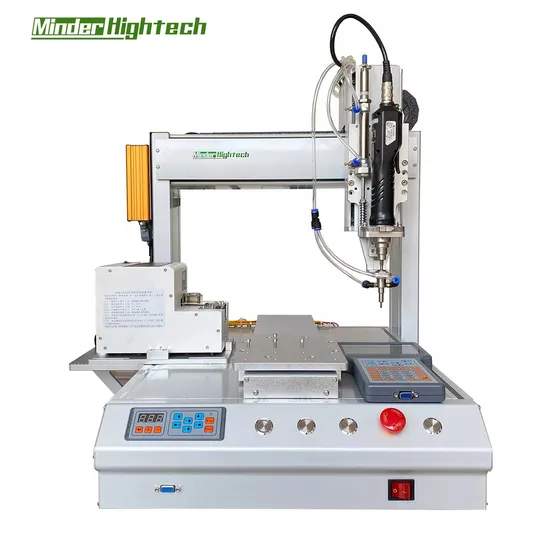

Robotic screw fastening system can increase throughput on a variety of assembly application
Applications
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board,
5C precision industries, network interface, navigator,TV,kettle,motor etc.
Feature
1. Desktop type, can be placed on the production line.
2. Optional Full english marked machine body, to be international application.
3. Double Y axis type, automatic working alternatively, saving the time of placing object.
4. The screw automatic ranking, automatic feeding, safe and silence.
5. Optional vacuum suction or blowing.
6. Main components of the machine are high quality, ensure the reliability and accuracy.
7. Optional Interface of English/Chinese.
8. Fixture and tooling available

Model	MD-DL-T3311CQ	MD-DL-T4411CQ	MD-DL-T5511CQ	MD-DL-T53311CQ	MD-DL-T54411CQ	MD-DL-T6441CQ	MD-DL-T7441CQ	MD-DL-T8441CQ
Stroke X	300mm	400mm	500mm	500mm	500mm	600mm	700mm	800mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm	400mm	400mm	400mm
Stroke Y2	no	no	no	300mm	400mm	400mm	400mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm	100mm	100mm	100mm
Material size	300*300	400*300	500*500	170*300	170*400	210*400	250*400	300*400
Rated speed	500mm/s (X-Y-Z) ,Max:1000mm/s
Screwer No.	Default 1 PC(optional 2 PCS)
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning accuracy	+- 0.02(mm)
Program	Control Teaching Box/PC
Screw feed mode	air blow
Screw feed speed	60PCS/Min
Screw driver	SDL series Servo motor screw driver(optional others)
External	RS232
Screw size	M1.0-M5.0
Screw length	4-16mm
Torque range	0.03-45kgf.cm
Lock speed	1.5s/ PCS
Program storage	100groups/1000points per group
Power	2*220V50Hz
Air	0.5Mpa
Dimension L	580mm	580mm	780mm	680mm	680mm	680mm	680mm	680mm
Dimension W	520mm	620mm	720mm	620mm	720mm	830mm	930mm	1000mm
Dimension H	603mm	603mm	603mm	603mm	603mm	603mm	603mm	603mm
Weight	60kg	70kg	80kg	75kg	80kg	95kg	100kg	105kg

Model	MD-DL-T3311XF	MD-DL-T4411XF	MD-DL-T5511XF	MD-DL-T53311XF	MD-DL-T54411XF	MD-DL-T6441XF	MD-DL-T7441XF	MD-DL-T8441XF
Stroke X	300mm	400mm	500mm	500mm	500mm	600mm	700mm	800mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm	400mm	400mm	400mm
Stroke Y2	no	no	no	300mm	400mm	400mm	400mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm	100mm	100mm	100mm
Material size	300*300	400*300	500*500	170*300	170*400	210*400	250*400	300*400
Rated speed	500mm/s (X-Y-Z) ,Max:1000mm/s
Screwer No.	Default 1 PC(optional 2 PCS)
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning accuracy	+- 0.02(mm)
Program	Control Teaching Box/PC
Screw feed mode	Vacuum suction
Screw feed speed	60PCS/Min
Screw driver	SDL series Servo motor screw driver(optional others)
External	RS232
Screw size	M1.0-M5.0
Screw length	4-16mm
Torque range	0.03-45kgf.cm
Lock speed	1.5s/ PCS
Program storage	100groups/1000points per group
Power	2*220V50Hz
Air	0.5Mpa
Dimension L	580mm	580mm	780mm	680mm	680mm	680mm	680mm	680mm
Dimension W	520mm	620mm	720mm	620mm	720mm	830mm	930mm	1000mm
Dimension H	603mm	603mm	603mm	603mm	603mm	603mm	603mm	603mm
Weight	60kg	70kg	80kg	75kg	80kg	95kg	100kg	105kg

---
