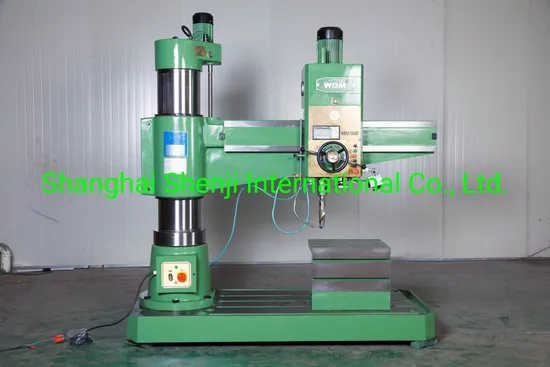

Z3063X20A Deep Hole Drilling Machine Radial Arm Drilling Machine

Product Description

Deep Hole Drilling Machine Radial Arm Drilling Machine Z3063x20A Deep hole drilling machine radial arm drilling machine Z3063x20A suitable for drilling,expanding,boring,reaming hole, scrape plane,tapping and threading.
Apply to various machine manufacturing industries in process medium or small element, also apply to repair workshop .
Z3063X20A Radial Drilling Machine Price is one of the large multi-purpose equipment, the machine is high efficiency, tight tolerance is small. Used for drilling, expansion, reaming, grooves, tapping intermediate and large parts, and even drilling, if equipped with the necessary equipment.

Model	Z3063x20A
Max. Drilling capacity(mm)	63
Distance spindle axis to column generating line	500-1600
Distance between spindle axis and column surface(mm)	400-2000
Spindle taper	MT5
Spindle travel	400
Spindle speeds range(mm)	20-1600
Spindle speeds series	16
Range of Spindle feeds (r/min)	0.04-3.2
Rocker rotary angle (degree)	360
Motor power (kw)	5.5
Movements motor power (kw)	1.5
Weight (Kg)	7000
Packing dimension(cm)	3000x1250x3300

Packing & Delivery
Z3063X20A Radial Drilling Machine Price using standard export packaging, to ensure the safety of transport machinery .

---
