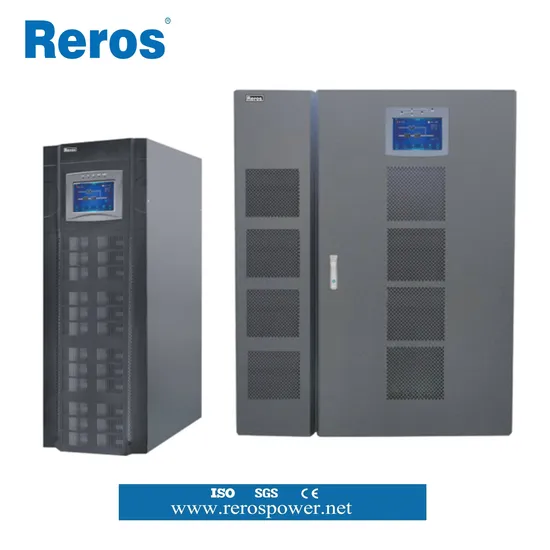

Transformer Based Low Frequecy Three Phase Power Supply Intelligent Industrial Online UPS 10-600K

Product Description

3B3G10-600K
Main Feature
1. Intelligent DSP control technology
2. Standard 7 inches touchable LCD
3. Intelligent charger management
4. ECO mode with high efficiency
5. RS232/RS485/USB communication port
6.Three phase UPS allow 100% unbalanced load
7.EPO/Dry contact function
8.N+X redundancy parallel system
Application
1.Data center
2.Commercial facility
3.Telecom system
4.Medical/Bank system
5.Precision instrument
Specification

Model

3B3 G10K

3B3 G15K

3B3 G20K

3B3 G30K

3B3 G40K

3B3 G60K

3B3 G80K

3B3 G100K

3B3 G120K

3B3 G160K

3B3 G200K

3B3 G250K

3B3 G300K

3B3 G400K

3B3 G500K

3B3 G600K

Capacity

10KVA

15KVA

20KVA/

30KVA

40KVA

60KVA

80KVA

100KVA

120KVA

160KVA

200KVA

250KVA

300KVA

400KVA

500KVA

600KVA

Input features

Voltage range (Vac)

380Vac ±25%

Frequency range

40-70(Automatically select synchronization range according to grid frequency)

Bypass range

±20%

Battery voltage

384VDC

Battery quantity

29-32pcs can be adjustable

38-42pcs can be adjustable

Output features

Output phase

3Φ+N+PE

Output voltage

380/400/415 Vac

Output voltage regulated accuracy

±1%

Output frequency accuracy

AC mode: tracking bypass input in synchronous state; Battery mode:50Hz/60Hz±0.1%

Output PF

0.8/0.9

Waveform

<3%(Linear load);<5%(Non-line load)

Peak factor

3:01

Overload

When the load is less than or equal to 125%, it can turn to the bypass output after 10 minutes; when the load is more than 150%, it can turn to the bypass output after 1minutes;

Others

System efficiency

AC mode:≥92%,ECO mode:≥98%

Transfer time

0 ms

Protection

Output short circuit protection, output overload protection, over temperature protection, battery low-voltage protection, output over under-voltage protection, fan fault protection, etc

Communication port

Standard:RS232,RS485,Dry contact,USB;For optional:SNMP

Display

7 inches touchable screen

10 inches touchable screen

Working temperature

0~55ºC

Storage temperature

-15ºC~60ºC(Not including battery)

Humidity

0%-95%(No condensing)

IP level

IP21

IP20

Noise(dB)

<65dB(Within 1 meter)

Size(D×W×H )mm

560×370×900

693×430×1160

815*430*1160

740×810×1410

865×1285×1600

865×1430 ×1600

865×1430 ×1800

1000×1530 ×1800

1200×2600×2000

Weight( kg )

108

130

146

193

240

300

330

580

680

1080

1180

1280

1380

1680

2100

2350

FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.

---
