USB Cable Production Machine Plastic Injection Molding Machine

Product Description

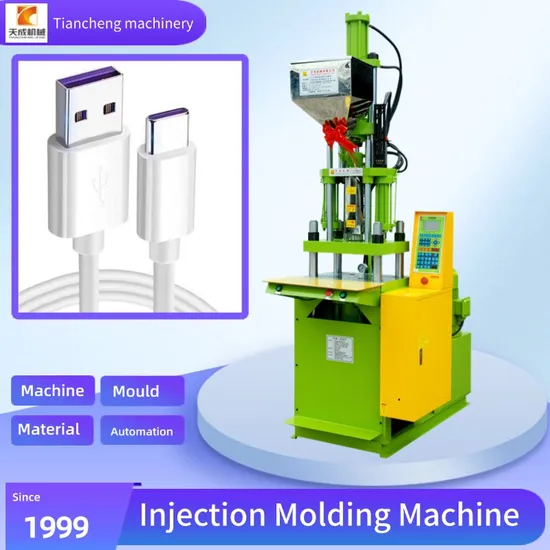

usb cable production machine plastic injection molding machine
Injection molding machine, also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical, horizontal, all electric. The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid. Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.
BIG INJECTION
Our cylinder is not simple injection cylinder.It is big
injection cylinder.It has larger injection pressure and Sectional area.The larger injection pressure will make the products appearance don't have sink mark;The larger Sectional area will make the machine has Steady
pressure.The machine will work steadily
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-250-P
Screw Diameter (MM)	26--30		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	1325--996		Pump Output (L/min)	30
Theoretical Shot Volume (Cm3)	55--74		Oil Tank Capacity (L)	116
Maximum Shot Weight (G/oz)	50/1.8--66/2.5		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	45--59		Electric Power (KW)	4
Screw Speed (R/Min)	0--150		Total capacitance (KW)	2
Screw Rate (MM)	106		Total Wattage (KW)	6
Nozzle Retraction Stroke (MM)	150		Machine Specification(M)	1.5*1.05*2.35
Clamping Force (Ton)	25		Weight of Machine (KG)	1100
Opening Force (Ton)	7		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	500*340		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	370*200		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	60/120		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	260/320
Max.Mold Size	350*280
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	35

For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1.what material you will use(PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.

Tiancheng Machine working video in Youtube:
Tiancheng machinery company profile	https://youtu.be/CxhkKeZD_NE?si=OtsRq2ZEIUUYZP7Y
Hang tag seal making machine	https://youtu.be/shorts/tJlhvgzqjaY?si=FLdJslDxD5432upg
Dental floss making machine	https://youtu.be/aTlFk3j_WCs?si=CIVq6Q32eIlEBw_-
Small cable products USB plastic injection machine	https://youtu.be/shorts/VDD0RPO2Y5c?si=tWnSskAfMfSZki6P
Artificial plant making machine	https://youtu.be/-LC7hwTd8rc?si=B3QeYwP4vNfNTNGb
Power cord cable plastic injection machine	https://youtu.be/shorts/DdLdjtD-eDE?si=HI5dbuKMIyD86yq1
Single sliding table plastic injection machine	https://youtu.be/shorts/xTwNukhx6Ac?si=zcR48oslYDwGso9v
Rotary table plastic injection machine	https://youtu.be/shorts/MUsWRfkQEqE?si=-68wWV6vFU7h4Ch2
VGA DVI HDMI DP plastic injection machine	https://youtu.be/shorts/TSjgdVQRNHY?si=Upn82J5vUMmSB0v7
Double slides injection moulding machine	https://youtu.be/shorts/qDpdZd86T2w?si=5KIq2xHBqBjficbP

About TIANCHENG We lived surrounded by rubber plastic products ,for help manufacturing various plastic products, TIANCHENG company focus on rubber plastic vertical injection molding machine since 1999. Over 20+ years manufacturing ,research and testing, TIANCHENG really understand full story of plastic injection ,especially for insert molding processing. Our factory is located in Shijie Town, Dongguan City, China, covering an area of 15,000 square meters. Tiancheng has plenty of rich and successful experience in plastic injection moulding, such as plastic coating injection moulding, multi-color /multi-material injection moulding, precision micro-dose injection moulding, thermosetting ( bakelite , BMC) injection moulding, LSR liquid silicone injection moulding, etc.

After Sale
Installation, debug	After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Training	Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
Quality guarantee	We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
After After sales	After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

1.How to choose injection molding machine?The injection weight should be about 1.2x product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.
2.How to pay?50% deposit T/T in advance, the balance50% payment by T/T before delivery (we accept payment by T/T, L/C etc.)
3.ls that possible for your company to send engineer to install machine for commissioning,even train our workers?Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa,travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visas successful.
4. If we buy your machines, is there any warranty?Yes, definitely. Totally 12-months warranty after shipment for mechanical parts. We are responsible for broken parts within12-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.

---
