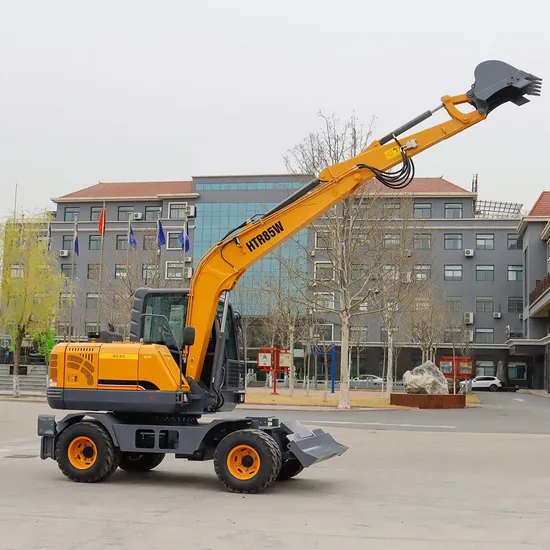

China Factory Direct Sale Wheeled Digger Bucket Dig Machine Wheel Excavators

Product Description

Product Description
Wheeled excavators and four-wheel drive off-road tires can be used in various work scenarios. Original imported hydraulic components have low power loss, fast action, good coordination of composite actions, high efficiency and energy conservation, high reliability, and long service life. The new driver's cabin provides an excellent driving and riding environment. Factory direct sales, quality assurance
1.The new cab is designed based on ergonomic principles, with a humanized front shift mechanism and a brand new interior design, providing a wide and bright view
2.Using heavy-duty front and rear drive axles and transmissions to provide higher load-bearing capacity.
3.The advanced turbocharged exhaust engine has sufficient power reserve, which can maximize the power of the starting engine, achieve perfect matching, and reduce power loss.

Four wheel drive off-road tires, suitable for multiple scenarios Strong power and fuel saving Heavier front and rear drive axles and transmissions provide stronger load-bearing capacity. Work faster and improve work efficiency

(Model):LG695H	(Hydraulic oil tank capacity):136L	N-maximum excavation depth:3558
(Overall Weight):8300 kg	A-Total length during transportation:6667	O-Maximum vertical excavation depth
(Bucket capacity):0.28m³	B-Full width during transportation:2130	P-maximum excavation radius:7127
(Engine model):YC4FA65-T300	C-Full height of boom during transportation:2264	R-Minimum turning radius:2323
(Power):50KW/2200RPM	D-Full height during transportation:2850	S-Maximum degree at minimum turning radius:5377
(Fuel tank capacity)::120L	E-Ground clearance of counterweight:1240	(Stick length):2200
(Walking speed):32KM/H	F-Minimum ground clearance:370	(boom length):3650
(Rotation speed):12r/min	G-Tail turning radius:2130	(Maximum unloading height of fixture):5718
(Gradeability):30°	H-wheel base:2360	(Maximum lifting weight of fixture):600kg
(Bucket digging force):42.03kn	J-Tire width:235	(Maximum opening size of fixture):1240
(Hydraulic pump model):DPS27	K-Turntable width:2015	(Minimum opening size of fixture):205
(Maximum flow rate):60.5X2+40.3+9.9L/min	L-Maximum excavation height:7568	(Maximum lifting height of fixture):7984
(Working pressure):24MPa	M-Maximum unloading height:5738	(Maximum gripping distance of fixture):6929

1.Spacious cab:
The new and enlarged driver's cab features a new interior design, a spacious and bright view, and a user-friendly front shift mechanism
2.Dynamical system:
The turbocharged exhaust engine has sufficient power reserve, and the highly compatible hydraulic system can fully utilize the power of the starting engine, saving more fuel.
3.Hydraulic system
Original hydraulic components have low power loss, fast action, good coordination of composite actions, energy efficiency, high reliability, and long service life.
4.Walking system:
The use of heavy-duty front and rear drive axles and transmissions can provide good load-bearing capacity.
