US$3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Pressure Homogenizer
Name

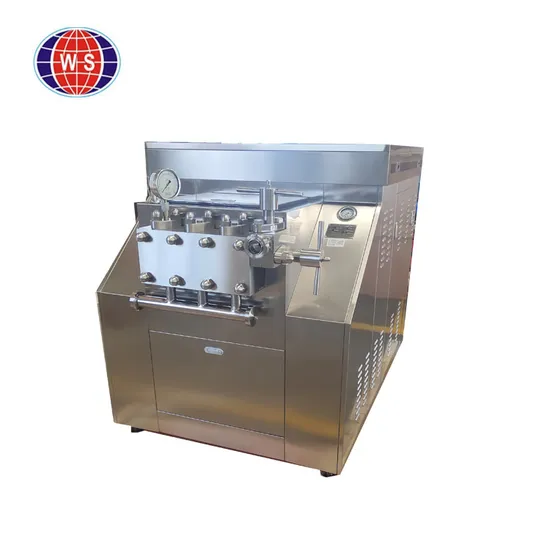

High Pressure Homogenizer
Dimension(L*W*H)
1250*950*1200mm
Material
Stainless Steel 304
Operating type
Continuous Operating
Specification
300L/H to 30000L/H
Origin
Shanghai, China(Mainland)
Production Capacity
200set/Year
Product Description
A. power end
motor: Siemens Bede Motor Co., Ltd.
Drive: two-stage variable speed; one-stage belt pulley, two-stage crank gear symmetrical transmission; special alloy bearing bush, double-sided rolling bearing, horizontal stability, low noise, and mechanical efficiency increased by about 10% on average.
Lubrication: splash type automatic lubrication and oil
B.Hydraulic end
The main pump body: three types, the gland adopts radial self-sealing, durable, no leakage.
Plunger: 3 plungers, durable, safe and easy to disassemble. Square plunger seal assembly, code X4310.
(Replacement of seal does not require unloading of pump body)
One-way valve: 3 sets of cone valve in and out, 6 sets in total. Durable and reliable, ensure flow rate ≥ rated flow value.
model
| 3000-25mpa
|
(50Hz)rated flow rate 50Hz power
| 3000l/h
|
()max work pressure(test pressure)
| 25MPa
|
rated work pressure
| ≤20MPa
|
material in pressure
| 0.2-0.3MPa
|
Liquid temperature / viscosity
| 100ºC/≤1000CP
|
rated motor pwoer
| 22KW
|
Interface diameter
| material in - out tube fittingRD70*1/6"
|
size
| 1.35*0.94*1.24m
|
weight
| 1200KG
|
lubricate oil
| N68or Mobil SHC626
|
>>
