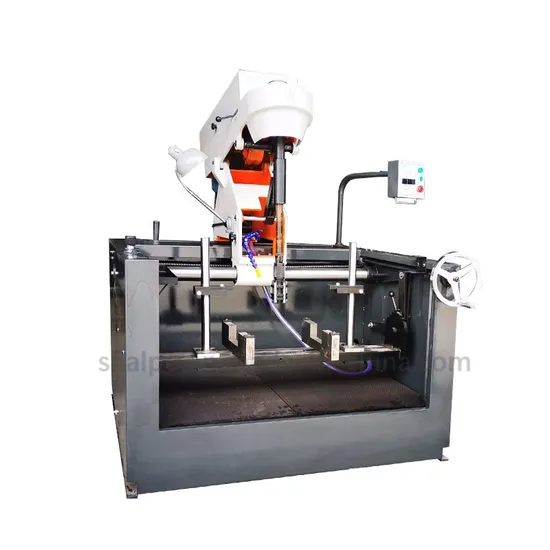

Factory Wholesale Vertical Cylinder Grinding Honing Machine for Engine Mvr220

US$3,800.00-6,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
MVR220
Type
Honing Machine
Processing Object
Cylinder
Abrasives
Whetstone
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Cylinder Honing Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Workpiece Diameter
19-203mm
Workpiece Length
10-470mm
Max. Loading of Worktable
680kg
Spindle Power
2.2kw
Spindle Speed
90-350rpm
Stroke Power
0.75kw
Stroke Depth
0-225mm
Coolant Oil Tank Capacity
208L
Transport Package
Ship/Train
Specification
1050kg
Trademark
SNALPO
Origin
China
HS Code
8460401000
Production Capacity
300pieces/Year

Product Description

Product Description
Machine Features
1 . The machine table can shift of the fixture change 0°, 30°, 45°.
2 . The machine table is easily up and down manually 0-180mm.
3 . Reverse precision 0-0 . 4mm.
4 . Select mesh-wire degree 0-90 or non-mesh-wire.
5. The machine performance widely use honing , easy operation and high productivity.
6. Good rigidity , amount of cutting.
MVR220 vertical honing machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motorcycles and tractors and also for other machine element holes.

Application Scenarios
Product Parameters
Vertical engine cylinder honing machine
main technical parameters
Items MVR220 Unit
Workpiece diameter 19-203 mm
Workpiece length 10-470 mm
Max. loading of worktable 680 kg
Spindle power 2.2 kw
Spindle speed 90-350 rpm
Stroke power 0.75 kw
Stroke depth 0-225 mm
Stroke speed 40-100 times/min
Coolant pump power 0.75 kw
Coolant oil tank capacity 208 L
Coolant oil flow capacity 38 L/min
Overall dimension 2318*1835*2197 mm
Machine weight 1050 kg
