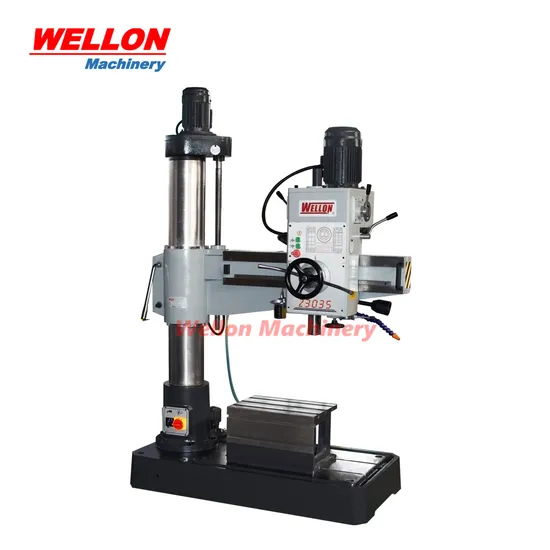

Mechanical Radial Drilling Machine (Z3035X10) Rocker Driller Machine

Product Description

Product Description:
Mechanical Radial Drilling Machine (Z3035X10) Rocker Driller Machine
Performence Features:
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
Technical parameter:

Model	Z3035x10
Max. drilling capacity	35 mm
Distance from spindle to column	360 - 1000 mm
Distance from spindle to table	260 - 1000 mm
Spindle travel	200 mm
Spindle taper	MT4
Spindle speed	75-1200 rpm
Spindle speed steps	6 steps
Spindle feed	0.1 0.16 0.22 mm/r
Rocker rotary angle	360 degree
Motor power	3.0 kw
Lifting motor power	0.75 kw
Dimensions	1235x600x1780 mm
Weight	1100 kg

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
