Taiwan Planer Grinding Machine-CNC Gantry Grinding Machine-CNC Planer Grinding Machine-Mold Base

Product Description

CHINA GOODA-HG-1825NC
Taiwan original precision grinding head
intelligent operation system

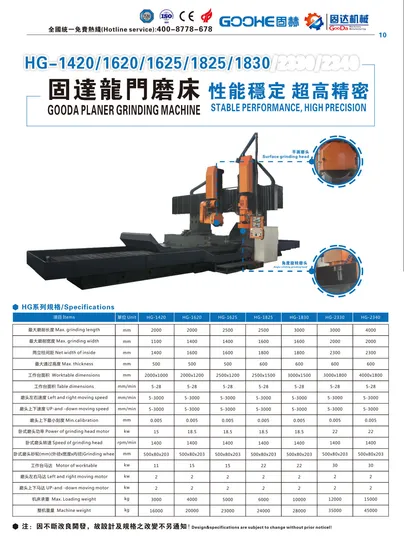

TECHNICAL PARAMETER

Item		Unit	Model
			HG-1825NC
Travel	Max.grind length	mm	2500
	Max.grind width	mm	1600
	Net width of inside	mm	1800
	Max.thickness	mm	600
	Table size(L*W)	mm	2500*1500
Grinding Head	Front and back moving speed	m/min	5-28
	Left and right moving speed	mm/min	5-3000
	Up-and-down moving speed	mm/min	5-3000
	Min calibration	mm	0.005
	Power of grinding head motor	kw	18.5
	Speed	Rpm	1400
	Wheel size(Outside diameter * width * inside diameter)	mm	500*75*203
motor	Motor of worktable	kw	22
	Left and right moving motor	kw	2
	Up-and-down moving motor	kw	2
Max.loading weight		ton	6
Machine weight		ton	29

Machine structure features
1. Horizontal grinding head
The horizontal grinding head adopts high-precision flange type spindle design. With three pairs of super-precision angular contact bearings (made in Japan/Germany), using high-temperature resistant high-grade lubricating grease, completely sealed, no need for additional maintenance. Therefore, it can maintain high quality characteristics such as low noise, high precision and low temperature during grinding.
2.Worktable drive
3.Gantry frame
The lower part of the double column is firmly connected with the bed, the upper part is tightly connected with the beam, and the machine bed, the double column and the beam form a rigid closed frame structure.
4. Grinding head drive
The grinding head is equipped with AC servo electric drive, with large torque and accurate feed.
5. Grinding wheel
The grinding machine is equipped with a safety type grinding wheel with buffer protection device. The wheel adopts reasonable structural transformation, so that the safety of the operator is guaranteed.
6. Lubrication system
The machine base adopts automatic circulating lubrication device. The horizontal and vertical motion guide rails and the ball screw adopt timing and quantitative automatic lubrication device, the operation is humanized, and the machine runs safely and reliably.
7.Cooling system
The machine coolant device is recycled after multi-stage filtration.
8. Pipeline protection
9. Hydraulic control system
The hydraulic system uses an independent hydraulic station. The hydraulic system controls the balance of the longitudinal movement of the worktable and the vertical movement of the grinding head.
10. Electric Magnet
The electric permanent magnet does not need electric energy during the working process, and only uses the permanent magnetic suction to hold the workpiece. It does not use any energy in work and produces safe, strong and efficient power, which is economical and environmentally friendly.
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.
Company Profile We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine,CNC Gantry Grinding Machine,5-Axis High Speed Gantry Machining Center , CNC High Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.
Cooperative Partner
Maintenance and repair
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards Contact
Irina Yang
Dongguan GooDa Machinery Manufacturing Co., Ltd.
Head office: No.137, F Building Kairuifeng Industial Park, Changdong RD,
Banshi Village,Changping Town, Dongguang City, GD, China
Facebook account: IrinaYanglu

---
