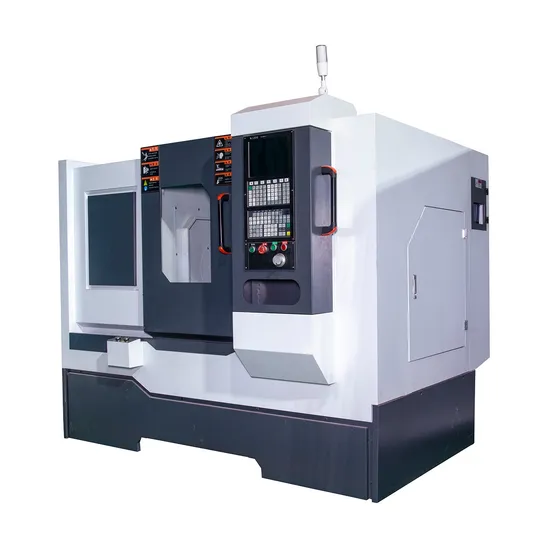

Pg46 High Precision CNC Lathe Machine Heavy Duty Lathe Machine CNC Milling Machine-Tools

Product Description

Product Description
Detailed Photos
Product Parameters
Technical ParameterStandard Configuration:
Machine model: PG46 Linear guide rail
Specification of bed: Fully enclosed guide rail
Control system: GSK 980TB3i Bus system
Clamping configuration: hydraulic clamping
Tool configuration: 8 station tool turret
Feed device:
1 lead screw: Taiwan Hiwin 4010
Guide rail: Taiwan Hiwin 45 roller
Spindle bearing: 7215DBB/7213DBB (Renben bearing)
Other configurations: 1. Electric oil pump 2. Water pump 3. Encoder
Machine bed: Bed 250 casting

Parameter	SPECIFICATIONS	Units	PG46
Machining Capacity	Maximum turning diameter over bed	mm	Φ420
	Maximum turning diameter over turret	mm	Φ200
	Maximum machining length	mm	750
	Maximum machining bar diameter	mm	46
	Diameter of spindle bore	mm	Φ56
	Maximum stroke of X/Z	mm	600/750
Power System	Spindle maximum spindle speed	r/min	3000
	Spindle Motor	KW	7.5
	Spindle Transducer	KW	7.5
	X/Z drive motor	N/M	7.5/7.5(Guangshu Original)
Tool Post	Height of rectangular tool shank section	mm	20
Feed velocity	Fast feed velocity	M/min	X/Z: 20
Precision	Repeat Positioning accuracy	mm	<0.01
	Machining accuracy	mm	<0.01
	Spindle beat	mm	<0.01
Other	Hydraulic pump motor	kw	0.75
	Cutting fluid pump motor	kw	0.4
	Power supply power	KVA	7.5
	Machine weight	kg	2500
	Machine Size	mm	2000x1500x1800

Packaging & Shipping
Customer Receiving Goods
Company Profile

FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
