Transmits VGA Video up to 328 Feet (100m) Extender

Product Description

Introduction

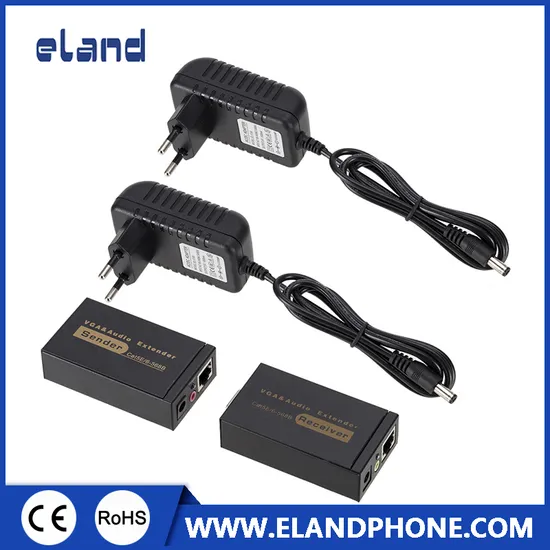

The 100m VGA Extender transmits VGA video up to 328 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
Features
♦ Ideal solution for digital signage applications.
♦ Supports local and remote VGA monitors.
♦ Supports resolutions to 1920x1440.
♦ Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
♦ Built-in lightning and ESD surge protection.
♦ Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
♦ Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.
Specificcation
A. Local Unit
♦ Host Connection
♦ Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux,
FreeBSD, and MAC OS 9/10.
♦ Male/Female 15-pin HD connector for computer connection.
♦ Optional stereo audio support - 3.5mm stereo plug.
♦ Local Access
♦ Crisp and clear 1920x1440 video resolution.
♦ Female 15-pin HD connector for local VGA monitor.
♦ Optional stereo audio support - 3.5mm stereo jack.
B. Remote Unit
♦ Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different
lengths.
♦ Female 15-pin HD connector.
♦ Optional 3.5mm stereo audio connection.
C. Video Quality Adjustment
♦ Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender.
D. Environmental
♦ Operating temperature: 32°F to 100°F (0°C to 38°C).
♦ Storage temperature: -20°F to 140°F (-30°C to 60°C).
♦ Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
E. Dimensions
♦ L*W*H (mm): 64*45*23mm ( Sender )
64*45*23mm (Receiver)
♦ Weight(Kg): 0.7KG ( With packaging )
F. Power
♦ 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
♦ Power Consumption: 6W (each - local and remote unit).
♦ Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom
environment.

---
