1200mm Diamond Segment for Marble Cutting

US$0.80-1.20 1,000 Pieces (MOQ)

Basic Info.

Model NO.

JINGSTAR

Blade Material

Diamond

Model No

Jingstar

Performance

Stable

Feature

Sharp, Wearable

Testing

Hardness, Dimension Cutting Materialall Kinds of M

Usage

Stone Cutting

Kind

Diamond Segment

Use

Marble, Limstone, Sandstone, Ceramatic, Porcelain

Blade Size

300-3000mm

Technology

High Frequency Welding, Laser

Transport Package

Carton, Wooden Carton, etc

Specification

24/40MM Length

Trademark

JINGSTAR

Origin

Fujian, China

HS Code

82023990

Product Description

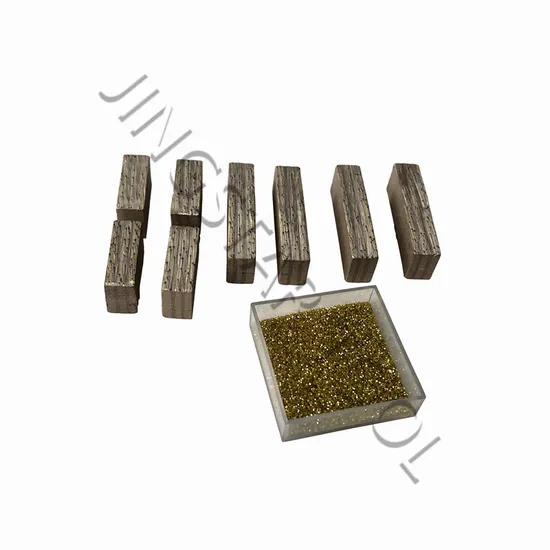

1200mm diamond segment for marble cutting Specifications Diamond Segment 1. Diamond segment for marble 2. Size: 24*8.6*15 3. Quantity: 80pcs/set 4. Fast cutting segment 5. Factory direct sale 6. Long lifespan 7. ISO9000: 2001, SGS

Diameter	Segment Dimension			NO. on one blade
Diameter	Segment Length	Segment Thickness	Segment Height	NO. on one blade
350	40	3.0/3.2	8/10/12/15	24
400	40	3.4/3.6	8/10/12/15	28
450	40	3.8/4.2	8/10/12/15	32
500	40	4.0/4.2	8/10/12/15	36
600	40	4.6/4.8	8/10/12/15	42
700	40	5.0/5.2	8/10/12/15	50
800	40	5.5/6.0	8/10/12/15	57
900	24	6.0/6.8	12/13/15/20	64
1000	24	6.0/7.0	12/13/15/20	70
1200	24	6.5/7.5	12/13/15	80
1600	24	8.4/9.0	12/13/15/20	108
1800	24	9.1/9.7	12/13/15/20	120
2000	24	10.5/11	12/13/15/20	128
2500	24	11/12	12/13/15/20	140
3000	24	11.5/12.5	20/25/33	160
3500	24	12/12.5	20/26	180

Features Diamond segment for cutting granite, marble, limestone, concrete, andesite, ceramic and so on. The diamond segment for diamond saw blade from 200mm-4000mm. Diamond segment type: Layer type, "K" type, "V" type, taper type, sandwich. Diamond segment could be installed on diamond saw blade, gang saw blade, drill machine, grinding wheel, multi saw blade, single saw blade etc. We can design different specification of diamond segment, it based on your requirements. The diamond segment: High efficiency, sharp, high cutting speed, long life. .
