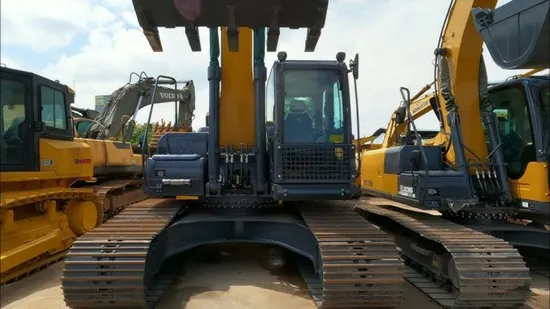

Xuzhou Factory 20t 21ton 22t Hydraulic Crawler Excavator Xe200ga Digger

Product Description

Product Description
1. Original imported engine
An Imported engine that provides powerful performance and low fuel consumption. The overall system is optimized to provide a comprehensive performance upgrade.

2. Latest fuel filter
The latest fuel filter improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.

3. Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance.

4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
Multiple applications Different boom, arm and bucket combinations can adapt to as many working conditions as possible Multi-functional work tool system can meet various operational requirements including digging, breaking, dismanting and so on.

Model		Unit	XE215GA
Operating weight		Kg	22500
Bucket capacity		m³	1.05
Engine	Electric injection	/	√
	4Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	/ Rated power/speed(ISO)	kw/rpm	129/2000
	/ Maximum torque/speed	N.m	850/1200
	Displacement	L	6.7
Main performance	(/) Travel speed(H/L)	km/h	6.0/3.3
	Swing speed	r/min	11.8
	Gradeability	°	≤35
	Ground pressure	kPa	48.6
	Bucket digging force	kN	165
	Arm digging force	kN	120
	Maximum tractive force	kN	184
Hydraulic system	Main pump	/	2
	Rated flow of main pump	L/min	2×225
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	28
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	150
	Engine oil capacity	L	23.7
Appearance size	Overall length	mm	9800
	Overall width	mm	2990
	Overall height	mm	3100
	Width of platform	mm	2830
	Track length	mm	4255
	Overall width of chassis	mm	2990
	Track shoe width	mm	600
	Wheel base of crawler	mm	3462
	Track gauge	mm	2390
	Counterweight clearance	mm	1100
	Min. ground clearance	mm	480
	Min. tail swing radius	mm	3035
	Track height	mm	940
Working scope	Max. digging height	mm	9620
	Max. dumping height	mm	6780
	Max. digging depth	mm	6680
	8Maximum depth cut for 2240mm(8 ft) level bottom	mm	6500
	Max. digging radius	mm	9940
	Min. swing radius	mm	3530
Standard	Length of boom	mm	5680
	Length of arm	mm	2910
	Bucket capacity	m³	1.05()
Optional	Length of boom	mm	5200
	Length of arm	mm	2410
	Bucket capacity	m³	0.9~1.3(reinforced bucket)
			0.8~1.0(rock bu
