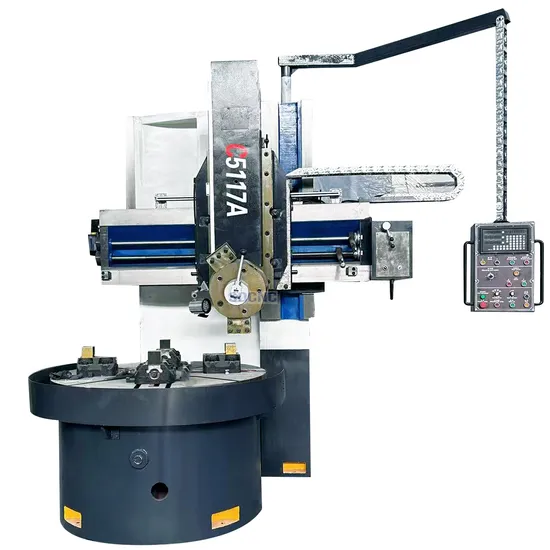

High Quality Vertical Lathe C5117 China Single Column Manual Vertical Lathe Machine

US$42,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
C5117
Type
Vertical Lathe
Processing Accessory
Metal
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Manual
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model Number
C5117
Function
Machining Metal Lathe
Name
Vertical Lathe
Table Dia.
1000mm
Transport Package
Wood Packaging
Specification
2662X2800X3350
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
2662.00cm * 2800.00cm * 3350.00cm
Package Gross Weight
13000.000kg

Product Description


Detailed Photos
Product Parameters
1.Conventional single column vertical lathe
No. Name Unit C516 C518 C5110 C5112 C5116 C5120
1 Max. turning diameter mm 630 800 1000 1250 1600 2000
2 Table diameter mm 600 720 900 1000 1400 1800
3 Max.height of workpiece mm 600 800 800 1000 1200 1250
4 Max.weight of workpiece T 0.8 1.2 2 3.2 5 8
5 Horizontal travel of tool post mm 500 570 670 700 915 1115
6 Vertical travel of tool post mm 650 650 650 650 800 800
7 Main motor power KW 11 22 22 22 30 30
8 Overall size of machine mm 1750*1230*2580 2080*2621*3515 2187*2711*3515 2460*2330*3430 2886*2672*3980 3200*2800*4000
9 Machine weight T 4 6 7 8.5 14 17

2.Conventional double column vertical lathe
No. Name Unit C5225 C5231 CQ5240 C5240 C5250 C5263
1 Max.turning diameter mm 2500 3150 4000 4000 5000 6300
2 Table diameter mm 2250 2830 2830 3200 4500 6000
3 Max.height of workpiece mm 1600 2000 2000 2500 3150 3150
4 Max.weight of workpiece T 10 10 10 32 50 50
5 Horizontal travel of tool post mm 1400 1735 2150 2160 50~2765 3415
6 Vertical travel of tool post mm 1250 1250 1250 1250 1600 1600
7 Power of main motor mm 55 55 55 55 75 90
8 Overall size of machine KW 5180*4560*4680 5520*6960*5725 6780*4850*5080 6870*5200*5850 12960×6781×8865 14260*6850*8865
9 Machine weight T 33 38 39 48 100 110

3. CNC Single Column Vertical Lathe Machine
Model CK518 CK5112Q CK5112A CK5116Q CK5116A CK5120A CK5126A
Max.turning diameter(mm) 800 1200 1200 1600 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1400 1800 2200
Max. height of workpiece (mm) 800 1000 1000 1200 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 5000 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 5-160 3.2-100 2.2-70
Feeding series stepless stepless stepless stepless stepless stepless stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 650 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 916 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30 30

CNC Double Column Vertical Lathe Machine
Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps 16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520
