Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000, EPA
Transport Package
Comply with Export Packaging Requipment
Specification
6125*2220*2720mm
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
612.50cm * 222.00cm * 272.00cm
Package Gross Weight
7280.000kg
Product Description

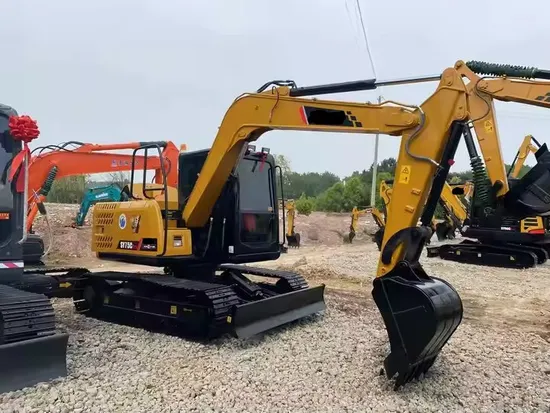

Caterbe SY75C 7ton Crawler Excavator Small Excavator
with EPA and CE Certificates
Farster Operating SpeedA quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy consumption.High RealiabilityLoad Sensitive Flow Distribution System: Senses micro changes of the load and adjusts flow and pressure in real time; optimized main valve core for perfect synergism between actuators and precise control.Safe and Comfortable Operating EnvironmentThe newly-designed cab with much room and larger windows provides you with a wider view.Equipped with excellent sealing, the cab is free from dust, rain, and noise that effectively reduce the fatigue of operator.Reinforced BoomThe side plates are thicker than before and the ear plates are redesigned to reduce stress at the bending. The boom has stood the durability test and field (soil and rock mixture) digging test.
Model
| SY60C(T4f)
| SY75C(T4f)
| SY95C(T4f)
|
Operating Weight
| 6T
| 7.28T
| 9.18T
|
Engine Power
| 42.4kW
| 43kW
| 53.7kW
|
Engine Model
| 4TNV98C
| CP-4LE2X
| 4TN98CT
|
Engine Displacement
| 3.3L
| 2.179L
| 3.3L
|
Fuel Tank
| 130L
| 150L
| 160L
|
Radiator
| 5.6L
| 6.5L
| 12L
|
Hydraulic Tank
| 85L
| 120L
| 120L
|
Bucket Digging Force
| 45KN
| 56KN
| 63.6KN
|
Arm Digging Force
| 33KN
| 38KN
| 46.8KN
|
Carrier Wheel on Each Side
| 1
| 1
| 1
|
Thrust Wheel on Each Side
| 5
| 5
| 5
|
Standard Boom
| 3m
| 3.72m
| 4m
|
Standard Stick
| 1.7m
| 1.62m
| 2m
|
Bucket Capacity
| /m³
| 0.28m³
| /m³
|
>>
