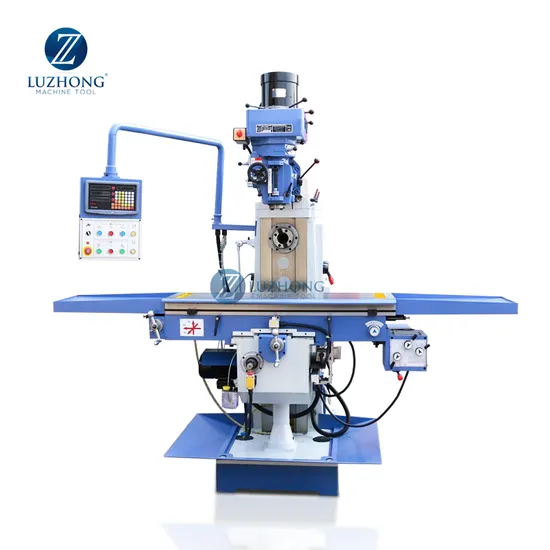

Luzhong high spindle speed metal X6330 turret milling machine fro sale

Product Description

Luzhong high spindle speed metal X6330 turret milling machine fro sale
Product Description
Product Parameters
The main performance characteristics:

Specifications	Units	X6325	X6330
Table size	mm	1270x254	1370x305
Table travel	mm	780/400/400	810/ 400 /400
T slot(number-width-pitch)	mm	3-16-50	3-16-65
Spindle taper		R8	(V)R8/ISO40
Spindle speed range	rpm	standard:16 steps 50HZ:65-4500 60HZ:80-5440	(V) 50HZ:65-4500 60HZ:80-5440 '16 steps (H) 45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	90-510	90-510
Distance between spindle axis and table surface	mm	-	120-520
Main motor power	kw	2.2	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1400	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
