Product Description
Product Description

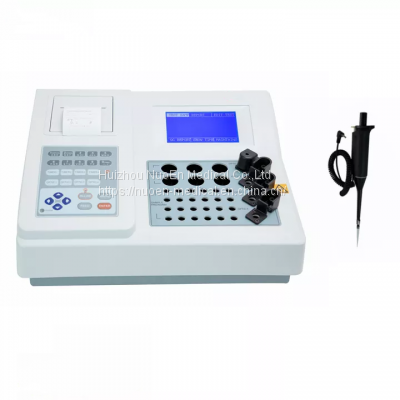

Coagulation Analyzer Coagulometer 4 Channels Medical Device
* Semi Auto Coagulation Analyzer Features: * Advanced scattered light principle and percentage analysis ensure accurate results.
* Low reagent consumption less than 20uL, open reagent.
* Special testing cup locationsystem, adding sample bracket
* Advanced optical light matching system ensure precision result.
* Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
* Memory for 10.000 testing result
* Internal thermal-sensitive printer
* 240* 128 large LCD display.
* Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors.
* RS232 interface, PC connecting for management softwaree
Model: HY5004 Semi-auto Coagulation Analyzer
Application Fields: Medical, Clinical, Laboratory, Dental, Vet Etc
Usual test list
Prothrombin PT
Activated Partial thrombopiastin time APTT
Thrombin Time TT
Fibrinogen FIB
RT、VT、VII、IX、 XI、 XII、 II、 V
VII、 X、 PS、 PC、 Xa、 etc
Technical Parameters
HY5004 Semi-Auto Coagulation Analyzer Specification
|
Testing channels
| 4 different parameters analysis in the same time
|
Sample pre-warming position
| 24 positions
|
reagent pre-warming position
| 6 positions
|
Software timer
| 4 positions
|
Test wavelength
| 470nm
|
Sample consume
| 20uL-40ul
|
Reagent consume
| 20uL-40uL
|
Temp control precision
| 37±0.3℃
|
Repeatability
| Cv<2%
|
Coincidence indicator
| ≤3%
|
Memory
| 10000 test result
|
Notation of Result
| S, %, PTR, INR, g/L
|
Operation language
| English
|
Power supply
| 220VAC±15% 50-60Hz
|
Dimensions
| 370mm(L)×370mm(W)×120mm(H)
|
Temperature
| 15℃-30℃ wet≤90%
|
Weight
| 8Kg
|
>>
