Introduction

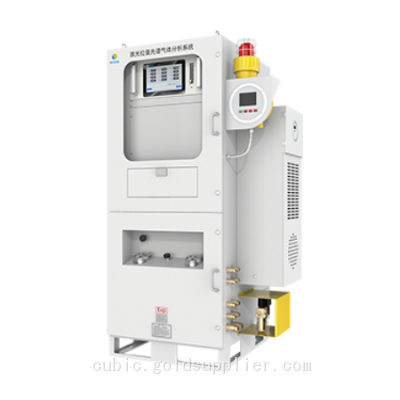

LRGA-6000 is an advanced analysis system mainly composed by the core analysis unit LRGA-3100, gas sampling & conditioning system, and data processing system. It works based on the principle of laser Raman scattering, which enhances, collects, processes and identifies the characteristic Raman scattering spectra of the gas to be measured and quantifies the content, and can provide online measurement for various gases simultaneously with the shortest response time in seconds. With rugged system design, it works properly for industrial applications with harsh gas conditions and provides reliable measurement data support for process monitoring and optimization.
Features
Non-destructive analysis of gases like CO, CO2, CH4, C2H2, C2H4, C2H6, C3H8, H2O, H2S, NH3, iC4, nC4, etc. including homonuclear diatomics like H2, N2, O2.
Real time calculation of gas quality indexes like Calorific value, Wobbe index, etc.
Wide detection range from 0.1% to 100% with high resolution and accuracy.
Fast response time in seconds, suitable for industrial online continuous monitoring.
Strong anti-interference ability based on Laser Raman technology of gas characteristic fingerprint spectrum.
No carrier gas required and no consumables, low operation cost.
Capable of mounting online in harsh process conditions of high temperature and high pressure with proper gas conditioning system.
Explosion-proof cabinet design suitable for hazardous area installation.
Optional multi-channel sampling design to measure multiple process points by one unit of analyzer.
Specifications
| Measurement Components | H2, N2, O2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, H2S, Calorific value, Wobbe index, etc. |
| Measurement Range | 0-100% (can be customized based on actual application condition) |
| Accuracy | ±2%F.S. |
| Response Time | | Repeatability | 2% |
| Working Temperature | 10℃～35℃ |
| Power Supply | 100~240VAC, 50~60Hz |
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
>>
