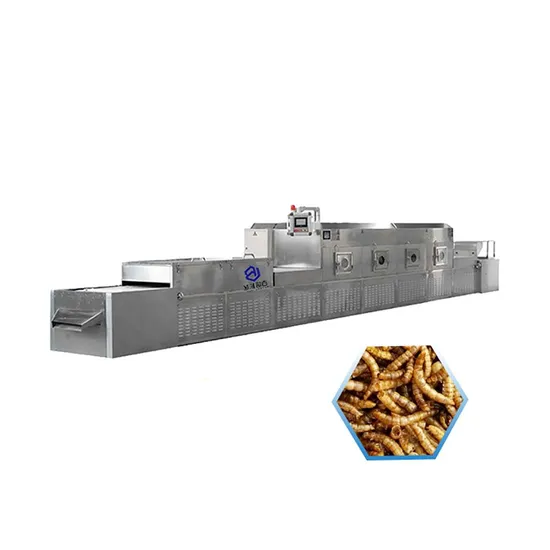

Industrial Meat Tunnel Type Barley Worms Mealworms Dehydration Thawing Machine Microwave Dryer

Product Description

Industrial Meat Tunnel Type Barley Worms Mealworms Dehydration
Thawing Machine Microwave Dryer
Product Description
Mealworms Microwave Dryer is used to dry mealworms by microwave. Microwave dryer is automatic temperature control system, automatic microwave density control system, heating time control system, automatic alarm system,optional PLC control system,air/water cooling system to ensure 24 hours continuous work of the equipment.
CONTACT US FOR FREE PRODUCT TESTING!!!
Application
Mealworms microwave drying equipment, also known as microwave dryer, is a microwave machine used to dry food, medicinal materials, wood,building materials, cardboard and other materials. Compared with traditional drying equipment, the characteristics of microwave drying equipment are: Fast drying rate, high efficiency, environmental protection and energy saving. Its working principle is to use the penetrating heating of microwave to increase the temperature of the material, so that the water in the material is vaporized and evaporated, and the evaporated water vapor is discharged by the moisture removal system to achieve the purpose of drying the material.
CONTACT US FOR FREE PRODUCT TESTING!!!
Why Choose Us
Detailed Photos
Product Parameters

Microwave output power	30KW
Microwave frequency	2450±50MHz
Overall dimensions	8200(L)×1300(M)×2000(H)mm
Microwave area	3800(L)×920(M)×520(H)mm
Conveying width	PTFE belt 700mm
Transfer speed	1-6M/min adjusted
Transfer power	1.5KW Frequency
Ambient temperature	-10-40ºC Relative humidity≤80%
Workshop environment requirements	No corrosive gas conductive dust and explosive gas around
Microwave feeding method	Top broadband feed
Microwave inhibition opening height	60mm(can be customized according to customer repuirements)
Magnetron cooling method	Water cooling
Conveyor belt correction	Guide bar automatic correction (adjustable)
Temperature measurement range and accuracy	From 0 to 300ºC Controllable and adjustable
Operation method	Intelligent PLC control

MORE OPTIONS
Model	Microwave Frequency	Output Power	Size(mm)	Sterilization capacity	Setting Temperature
BX-6	2450MHz±50Hz	6kw(adjustable)	4500*820*1750mm	60kg/hour	0-200ºC
BX-30	2450MHz±50Hz	30kw(adjustable)	8200*1300*1750mm	300kg/hour	0-200ºC
BX-60	2450MHz±50Hz	60kw(adjustable)	12000*1800*1750mm	600kg/hour	0-200ºC
BX-100	2450MHz±50Hz	100kw(adjustable)	13900*2000*1800mm	1000kg/hour	0-200ºC
BX-300	2450MHz±50Hz	300kw(adjustable)	35000*2000*2400mm	3000kg/hour	0-200ºC

Contact us now to get the customized solution for you! Company Profile
FAQ
Q1. Are you a manufacturer?Yes, BAIXIN is a leading manufacturer in China, dedicated to the microwave dryer for more than 16 years.Q2. What is the application scope?Deep processing for black solider,flour weevil,scorpion,cocoon,earth yuan and other protozoa. Drying and curing for peanuts,melon seeds,hazelnuts,chestnut,pine nuts,pistachios,beans and other cereal nuts roasted seeds. Drying and sterilization for mushrooms,fungus,black fungus and other mushrooms. All kinds of roots and leaves of herbal medicine and medicine Pieces drying and sterization. Dehydration,fixing and extraction for tea,honeysuckle,chrysanthemum,roses and other flowers and leaves buds drying,dehydrating,color-fixation and extracting.Q3. How to insall the machine?For the type of All-in-one, there is no need to assemble, but for the one needed assembling, we will provide a training course or the support provided by our local partner.Q4. What is the after-sales service?One-year guarantee for the whole set and lifelong after-sales service.
Packaging & Shipping
In order to suggest you a appropriate machine, could you please kindly tell us some information as follows?Thanks in advance.1, Which materials will you process mainly?2, How many kilos fresh materials will you process per day? how about the moisture before and after drying?3, Do you need only dryer or also need other extra processing machine?such as grinding,packing machineClick here to contact us

---
