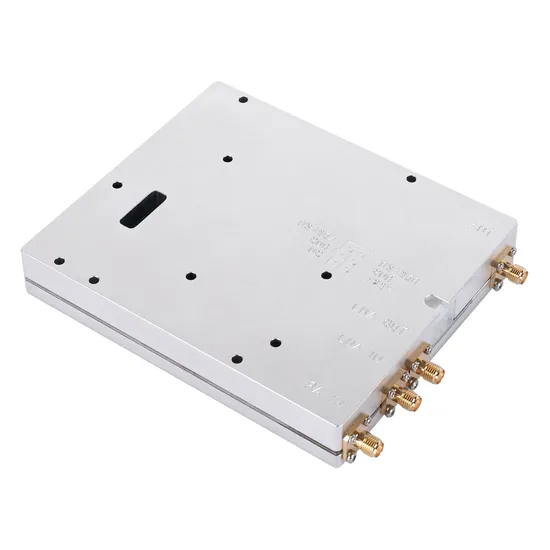

25W Tdd Dmr/P25 RF Power Amplifier Module - PA Module for Repeaters

US$150.00-1,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ACPATD25WT06
Support Network
2g
Information content
Voice
Certification
CE, ISO, RoHS
Condition
New
Transport Package
Carton
Specification
100mm x 70mm x 21mm
Trademark
ACTION
Origin
China
Production Capacity
10000 Set/Year

Product Description


Ports of the PA module
A. POWER-6 Connector for Power Supply& Monitor,Pin definition:
PIN 1 -->LNA EN(NC)
PIN 1 -->PA EN(NC)
PIN 1 -->T/R
PIN 1 -->GND
PIN 1 -->LNA SW(NC)
PIN 1 -->+28V
B. RF Connector: MCX-KE
C. T/R Switching:The level is 3.3~5v, high-level transmit, low-level receive

Specification:
Items Downlink Uplink
Frequency rang(MHz) Customized
Max Output Power 44±1dBm
Gain ≥35dB ≥10dB
Gain Adjustable rang ≤5dB
EVM ≤5%(r.m.s)
ACPR ≤-45dBc
In Band Ripple ≤3dB
Frequency Error ≤0.01ppm
VSWR ≤1.5
Noise Figure ≤3
Group delay time ≤1μs
Max. Input Power Without Damage 0dBm(CW) -10dBm(CW)
Power Supply +28V;≤1.0A
Operating Temperature -40~+55ºC
Test Signal LTE20MHz,64QAM,PAPR=9.7


Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4. Delivery & Shipment Date:
3-30 days
Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
Q6. Output Power & Coverage Areas:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
