US$400.00-600.00
|
20 Meters
(MOQ)
|
Basic Info.
Material Feature
Oil Resistant, Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Color
as Customers′ Requirements
Certification
ISO,Cema,SGS
Conveyor Length
10m--10000m
Reducer
as Customers′ Requirements
Warranty of Core Components
One Year
Pulley Diameter
300-2000mm
Transport Package
Standard Export Packing
Specification
40′ CONTAINER
Production Capacity
1000ton/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 80.00cm
Package Gross Weight
500.000kg
Product Description
Product Description Belt Conveyor is one of the most economical choices for transporting bulk materials from one point to another point. The belt conveyor system is composed of conveyor belt, driving device, cylinder, roller, tension device, rack, head funnel, feed channel, sweeper,unloader, electrical safety protection device.It is a continuous conveyor equipment using cotton canvas, nylon, polyester canvas and steel cord conveyor belt components for drag cited.transport various bulk, block or integer goods with loose density 500-2500kg/m3.The belt conveyor with high belt speed,large handling capacity,long distance conveying is widely used in mining, metallurgy, port, cement, grain, chemical and other industries.

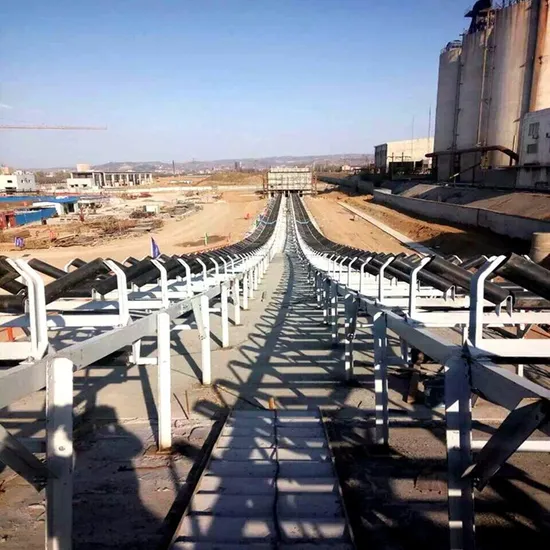

Detailed Photos
Product Parameters
Belt width (mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Belt speed (m/s) | Capacity (m³/h) |
| 0.8 | 69 | 127 | 198 | 324 | - | - | - | - | - | - | - |
| 1.0 | 87 | 159 | 248 | 405 | 593 | 825 | - | - | - | - | - |
| 1.25 | 108 | 198 | 310 | 507 | 742 | 1032 | - | - | - | - | - |
| 1.60 | 139 | 254 | 397 | 649 | 951 | 1321 | - | - | - | - | - |
| 2.00 | 174 | 318 | 496 | 811 | 1188 | 1652 | 2186 | 2795 | 3470 | - | - |
| 2.50 | 217 | 397 | 620 | 1014 | 1486 | 2065 | 2733 | 3494 | 4338 | - | - |
| 3.15 | - | - | 871 | 1278 | 1872 | 2602 | 3444 | 4403 | 5466 | 6843 | 8289 |
| 4.00 | - | - | - | 1622 | 2377 | 3304 | 4373 | 5591 | 6941 | 8690 | 10526 |
| 4.50 | - | - | - | - | 2674 | 3718 | 4920 | 6291 | 7808 | 9776 | 11842 |
| 5.00 | - | - | - | - | 2971 | 4130 | 5466 | 6989 | 8676 | 10863 | 13158 |
| 5.60 | - | - | - | - | - | - | 6122 | 7829 | 9717 | 12166 | 14737 |
| 6.50 | - | - | - | - | - | - | - | 9083 | 11277 | 14120 | 17104 |
Certifications
Packaging & Shipping
Company Profile Beijing Qianzhen Tianzheng Engineering Technology Co., Ltd. (abbreviated as Qianzhen Tianzheng) is the High-end Conveying Equipment brand , with excellent technical team and in house intellectual property & national patents,developing intelligent conveying machinery. Focusing on transforming itself into international competitive one-station solution provider of intelligent conveying system, providing not only intelligent products but also whole cycle management from construction to operation & service for our customers.
Application
FAQ 1. Are you a manufacturer? Yes, we have manufactured conveyor and conveyor components for more than 19 years.
2. What's the delivery time? About 10--30 Days according to the products quantity.
3. What are the payment ways? T/T, L/C.
4. How does your factory guarantee the products quality? Before delivery, we have five times inspection.
>>
