Downspout Gutter Roll Forming Machine Roofing Sheet Making Machine

Product Description

Product Description

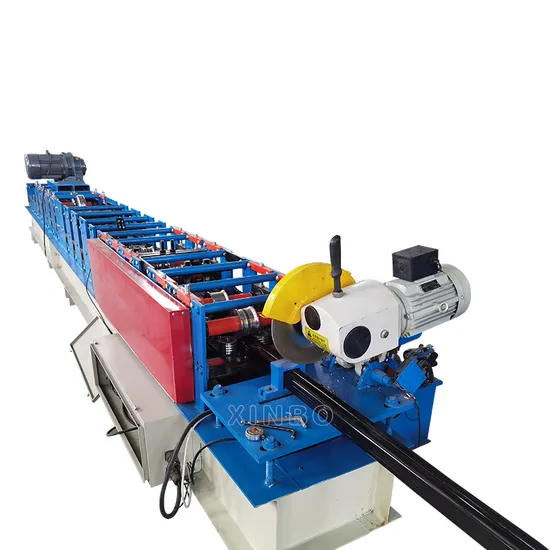

Downpipe roll forming machine
Downpipe roll forming machines are essential equipment in the construction industry. They are used to create seamless, custom-sized downpipes that are used to direct rainwater away from buildings. These machines are designed to work with a variety of materials, including aluminum, steel, and copper.
The roll forming process involves feeding a metal coil through a series of rollers that gradually shape the metal into the desired shape. The downpipe roll forming machine is specifically designed to create the unique shape required for downpipes. The machine is able to produce downpipes of varying lengths and thicknesses, depending on the needs of the project.

Product Parameters

main parameters
shaft material	45#
shaft diameter	70mm
roller material	45#
rolling station	20 rows
main motor power	7.5kw
machine structure	middle steel plate or arch way
machine basic frame	350H beam
transmission	by chains
cutting type	by saw
cutter motor power	3kw
dimension	12000*1000*1300mm
bending machine dimension	1300*650*1500mm
bending degree	90 degree
bending machine motor power	2.2kw

Detailed Photos
Certifications
Company Profile
Botou Xinbo Import & Export Co.,Ltd mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine,downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
Packaging & Shipping
FAQ
1.How about your price?
Although we are brand name products,but our prices are very favorable and competitive.?Customer from all over the world to purchase our products, because our best price.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.

---
