US$1.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Applicable Thickness
Thick Material
Thread Number
Single Thread
Needle Number
Single Needle
Transport Package
Normal Carton
Production Capacity
1000pieces/Year
Product Description

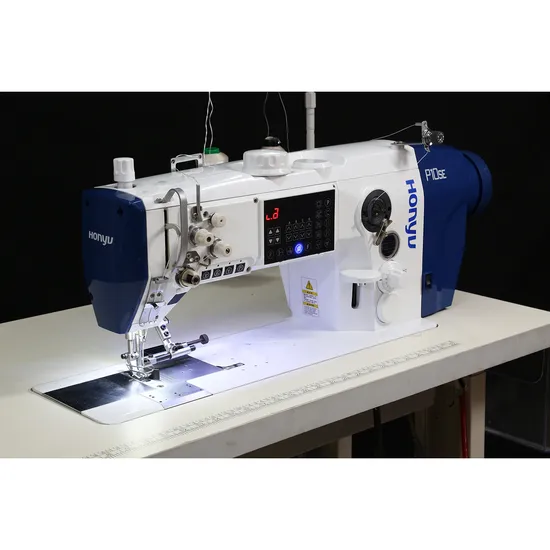

Walking foot leather industrial sewing machine, flat bed sewing machine
P10SE-130742 Direct drive, single needle binding compound feed sewing machine
| Model No. | P10SE-130742 |
| Feeding system | Alternating presser foot, feed dog and needle feeding |
| Max sewing speed | 3000 s.p.m |
| Shuttle diameter | Ф32mm |
| Applied needle | DP×17 #18-#23 |
| Needle quantity | 1 |
| Thread size | Maximum thread 12 strands nylon |
| Max stitch length | 9mm |
| Max alternating presser foot | 9mm |
| Max presser foot lifting height | 20mm |
| Auto trimming | √ |
| Auto back tacking | √ |
| Presser foot lifting height by air | √ |
| Auto oil system | √ |
| HP function | √ |
| Halving positioning device | - |
| Operation space | 351×125mm |
| Multi-grade adjustable LED light | √ |
| Electronic handwheel | √ |
| LED touchscreen | 5.1 inch |
| Halving positioning device | - |
| Function related can be set | √ |
| Double stitch length switch quickly | √ |
| Pneumatic compensation thread clamp | √ |
Product Description
1.Single needle platform compound feeding sewing machine.
2.Equipped with XXL hook(Ф32mm),standard automatic thread trimming device,the remaining thread tail length after thread trimming is about 15mm,with functions such as automatic back tacking and automatic foot lifting.
3.Typical application areas:Abutted seam and decorative topstitch in the automotive industry.
Needle gauge can be set
P10SE double needle series adopts metric needle gauge group,6mm, 8mm, 10mm and 12mm various specifications are available.
Larger operation space
351*125mm, the larger operation space facilitated the handling of large-area workpiece.
Pneumatic presser foot lifting
The lifting height of the presser foot can be up to 20mm,which is convenient and quick to place the sewing material.
XXL large hook
P10SE series is equipped with XXL large hook as standard.The diameter of bobbin is 32mm.Compared with the first generation of HONYU,the capacity of thread is increased by 47%,the frequency of bobbin changing is effectively reduced.
HP function
1.Transform the maximum presser foot alternating amount 9mm by one-click.
2.When the sewing reaches the position between up and down step,pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount,it will form a perfect stitch.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofa.
