2020 Auto Tct Saw Blade Sharpening Machine for Power Saws Blade

US$999.00-56,000.00 1 unit (MOQ)

Basic Info.

Model NO.

TF 650

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Cylindrical Grinder Type

Plunge Cylindrical Grinder

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Saw Blade Diameter

110~650mm(Max700mm)

Hook Angle

0°~ -27°

Top Angle

8°~30°

Chamfer Angle of Top

45°~-45

Chamfer Angle of Face

30°~-30°

Bore Diameter

12-120mm

Wheel Diameter

125mm*32mm

Wheel Speed

4000~5000r/Min

Grinding Speed

1~20mm/S

Power

4kw

Voltage

AC 380V-50Hz/220V-60Hz

Weight

1600kg

Transport Package

Water Proof + Wood Carton

Specification

1800 *1200 *2030mm

Trademark

TORSEL

Origin

China

HS Code

8460310000

Production Capacity

5000units/Year

Product Description

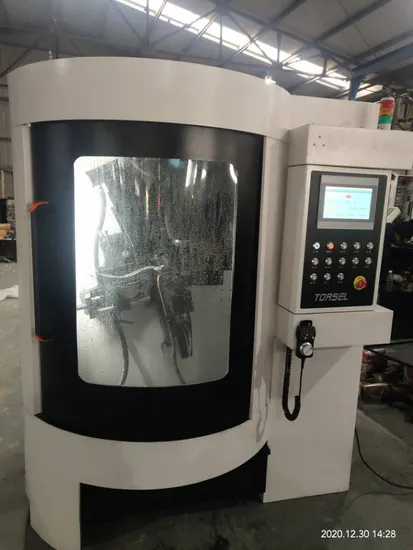

TF 650CNC Top/Face Sharpening Machine High-level productivity & precision grinding machine for carbide tools.

Advantages of saw blade sharpener • More precision- grinding precision: <0.025mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP & FACE of saw blade
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter

Saw Blade Diameter	110~650mm(Max700mm)
Hook Angle	0°~ -27°
Top Angle	8°~30°
Chamfer Angle of Top	45°~-45°
Chamfer Angle of Face	30°~-30°
Bore Diameter	12-120mm
Wheel Diameter	125mm*32mm
Wheel Speed	4000~5000r/min
Grinding Speed	1~20mm/s
Power	4KW
Dimensions	1800 1200 2030mm
Weight	1600kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

Patents
FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
