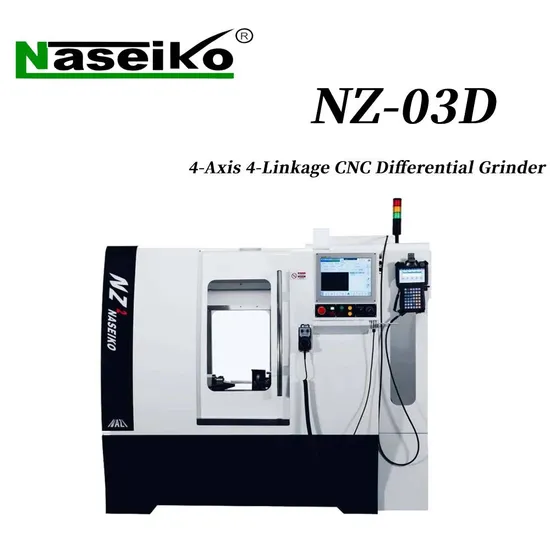

Naseiko Nz-03D CNC Blank Prepararion Grinder Step Grinding Machine High Precision

Product Description

Detailed Photos
Product Description
X axis, horizontal straight CNC axis, Taiwan servo motor, THK precision ball wire rod, THK precision roller guide rail

Y axis, horizontal straight CNC axis, Taiwan servo motor, THK precision ball wire rod, THK precision roller guide rail.

A axis, rotating permanent magnet workpiece shaft

Grinding wheel spindle: 15KW permanent magnet electric spindle

Integral marble bed body

Seal the cover, convenient to adjust the machine, paint, the cover can be removed as a whole, convenient maintenance

The CNC operation panel is installed on the hood, and adopts the mobile hand wheel with magnets for easy operation.

A special high-speed grooved electric spindle, can install one to two pieces of grinding wheel, can be dismantled to the grinding wheel dressing machine to repair the grinding wheel.

Frequency frequency control of spindle motor.

Install pipe sealed oil-proof fluorescent lamp in the machine.

Taiwan SYNTEC SCARL, robot automatic loading and unloading machine independent space installation, increase the service life of the robot.

Guide rail: Japan THK level P

The screw: Japan THK level C3

Servo motor: Taiwan SYNTEC Absolute value CNC system

Robot: Taiwan SYNTEC (four axis)

Product Parameters

PROJECT	UNIT	NZ-03D
X axis	-	CNC four axes linkage linear axis
Y axis	-	Imported servo motor drive
Manual C axis	mm	Left/right rotate 15°
Quick travel (X/Y/Z/A axis)	mm	0.0001
Minimum diameter for clamping workpiece	mm	3
Maximum diameter for clamping workpiece	-	16
Maximum length for clamping workpiece	-	150
Minimum diameter for grinding workpiece	mm	1
Maximum diameter for grinding workpiece	-	20
Maximum workpiece weight	kg	5
Linear resolution	mm	0.005
Linear repeating positioning accuracy	mm	0.004
Grinding wheel spindle power	kw	15kw (rated: 3000-8000 rounds)
Grinding wheel diameter	kg	75mm(min)~150mm(max)
Machine weight	kw	About 3000
Total power	kw	≤17.5kw

Packaging & Shipping

Company Profile
Naseiko, a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines, are committed to delivering integrated solutions to meet the needs of our worldwide customers in this industry.- Our extensive product line covers a wide range of applications in the tungsten carbide industry. We offer top quality products such as high precision CNC insert, milling cutter, carbide burrs, industry knife, wear-resistant components, carbide tools. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.

- Except supplying superior quality carbide products, Naseiko also provide a wide range of equipments and solutions specifically designed for tungsten carbide production. Our state-of-the-art equipment includes high-precision electric servo pressing machines, Five axis linkage CNC grinding machines, Five axis linkage CNC grinding machines, and all kinds of high precision carbide mold. Our advanced machines help our customers to enhance production efficiency, ensure high machining precision and maintain consistent product quality.
FAQ
Q: What is your product line?
A: CNC grinding machine, CNC mismatch grinder machine, Electronics servo press machine, Precision Grinding Wheel Dressing Machine. Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standerd Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field. We have international advanced testing equipment, excellent craftsmanship and refine quality management system, as well as professional team. It ensures our products stable and reliable.

---
