Horizontal CNC Lathe Torno 38mm Swiss Type CNC Lathe with Syntec Control System

Product Description

√ Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
√ Built in electric spindle,hydraulic clamping,ensure high precision machining.
√ Main spindle clamping is compatible with two clamping forms: forward push and backward pull, no need for large diameter grinding materials.
√ The primary processing length of the main spindle with guide bush is 320mm.
√ Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.
√ Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed.
This sophisticated series of machines is designed for precision processing, capable of executing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. These machines excel in batch processing of precision hardware and uniquely shaped non-standard shaft parts.

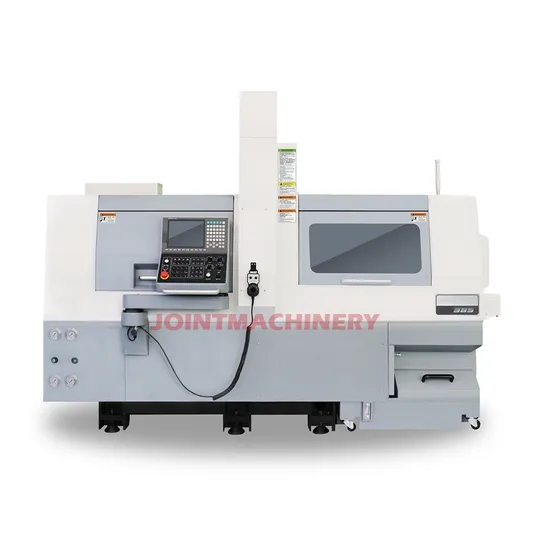

Horizontal CNC Lathe Torno 38mm Swiss Type CNC Lathe with Syntec Control System

Model		Unit	SLM385-1
			5 axis, dual spindle
NC system			SYNTEC 220TB
Lathe rated power		kw	25
Machining Range
Max machining diameter		mm	Φ38
Max machining length (one-time clamping) With guide bush		mm	320
Max machining length (one-time clamping) Non guide bush		mm	85
Max tool installed qty		pcs	24
Main/Sub Spindle
Main spindle power		kw	10
Sub spindle power		kw	10
Main spindle max through hole dia		mm	Φ42
Main/Sub spindle rev speed		rpm	6000
Sub spindle max clamping dia		mm	Φ38
Sub spindle max through hole dia		mm	Φ42
Main Spindle Tool
1.OD turning tool	Qty*Model		8*16 + 1*20
2.Side-live tool	Qty*Model		3*ER20 + 1*ER25
	Drilling dia	mm	Φ16
	Tapping/Threading die dia		M8
	Live tool rev speed	rpm	5000
	Live tool power	kw	2.3
3.End face fixed tool	Qty*Model		6*ER20
	Drilling dia	mm	Φ13
	Tapping/Threading die dia		M10
4.Angular drilling head		mm
5.Axial drilling and milling tool		mm
Sub Spindle Tool
1.End face fixed tool	Qty*Model	mm	5*ER25
	Drilling dia	mm	Φ16
	Tapping/Threading die dia		M10
2.Side-live tool	Qty*Model	mm
	Drilling dia	mm
	Tapping/Threading die dia
	Live tool rev speed	rpm
	Live tool power	kw
3.Axial drilling and milling tool
Other Information
Rapid feed speed		m/min	18(X1) 24(X2/Y1/Z1/Z2)
Feed motor power		kw	1.7
The power capacity		vac	380
Air pressure device		mpa	0.6
weight		T	4.5
Dimensions		mm	3000*1450*2200

Tool Configuration
Machine Configuration
Standard Configuration:
SYNTEC numerical control system
Main pneumatic chucking device
Movable guide bush
Synchronal rotary guide bush device
Live tool
Workpiece belt conveyor
Optional Configuration:
Non guide bush
MITSUBISHI numerical control system
FANUC numerical control system
High pressure pump
Oil mist collector
Y2 tool holder
Chip conveyor
Long workpiece collector

Bar Feeder Details
Bar Feeder SLM-320/S2 Technical Specifications
Diameter	mm	Φ3- (Φ20) Φ26 (May vary depending on applications)
Model	m	2.5	3.2	3.7	4.0
Magazine capacity		Φ5mm*52pcs
Overall length	mm	3355	3949	4505	4855
Overall width	mm	720
Max bar length	mm	2600	3200	3750	4100
Weight	kg	378	393	435	440
Air pressure	kg/cm2	5~7
Power supply		220V 3P (Varying power supply is available depending on applications)
Spindle height	mm	900~1200
Headstock type		Fixed/Sliding
Options		Telescopic Tube,Synchronization Device

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of professionalism and expertise in the manufacture and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. We are steadfast in our mission to deliver supreme quality machines alongside outstanding service to our global clientele. Focusing on stringent quality control and continuous quality enhancement, we ensure our products are at the pinnacle of industry standards. Integrating cutting-edge technologies from Taiwan and Germany with advanced production equipment and methodologies, we offer products that epitomize precision, stability, and reliability. Our machines are revered for handling intricate and demanding machining requirements with aplomb. With a worldwide export reach, our products have garnered immense recognition and popularity among customers. Our expansive market footprint spans Asia, Europe, South America, North America, and beyond. We have forged enduring partnerships with clients across various nations, collaboratively creating substantial business value.

---
