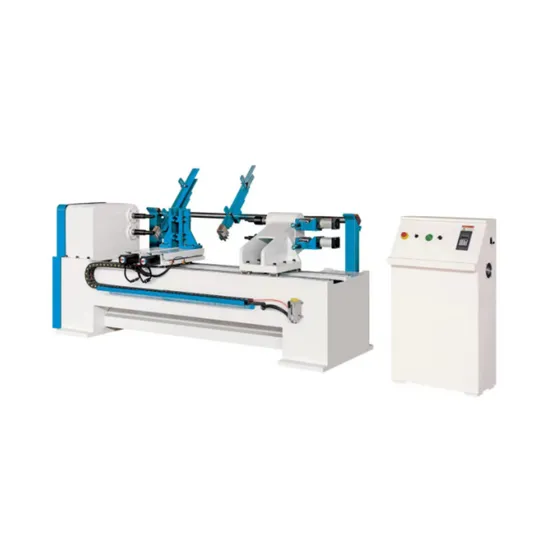

Double Spindle Automatic Feeding CNC Woodworking Machinery Lathe

Product Description

We supply high quality XYJX-P150S XYJX-P200S Double-Spindle Automatic Feeding NC Woodworking Lather Product Show
1.Product Show
Product Description
2.Product Description

Model	XYJX-P150S	XYJX-P200S
Overall size(length*width*height)	2500*1400*1300mm	3000*1400*1300mm
Main motor	4.0kw	5.5kw
Hot net weight	1600kg	1800kg
Single shaff rotary diameter	600mm	600mm
Machining length	20-1500mm	20-2000mm
Total power	9.5kw	11kw
Power of planer engraving motor	2.2kw	2.2kw

Product Feature
3.Product introduction
1.Four using 1 axis linkage closedloop control system, double knife turning, before and after each one,turning effciency is high, a column to complete turning, milling, engraving processing at least 90 seconds.
2. is set a multifunction machining, turning, straighten trough, milling helical surface and sculptured surface,surface carving automatic switching for in intricate and beautiful flower type workpiece machining.
3. according to the actual situation of the processing material free adjustment of the proportion of turning,reduce the beating and vibration of the workpiece, increase the wood finish.
4.Whole iron casting machine body guarantees working stability
5.This machine is with CNC control system which is specially designed for woodworking machine.
6.This CNC support G instruction programming function for CAD. It is easy to control and maintain for exportation.
7.Applicable to solid wood furniture, solid wood staircase, solid wood racks, home decoration, wooddecoration, wood crafts and other industries.
Product Details
4.Product Details
Company Profile
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sanding machine.en.made-in-china.com; you could get more information about our company and our products

---
