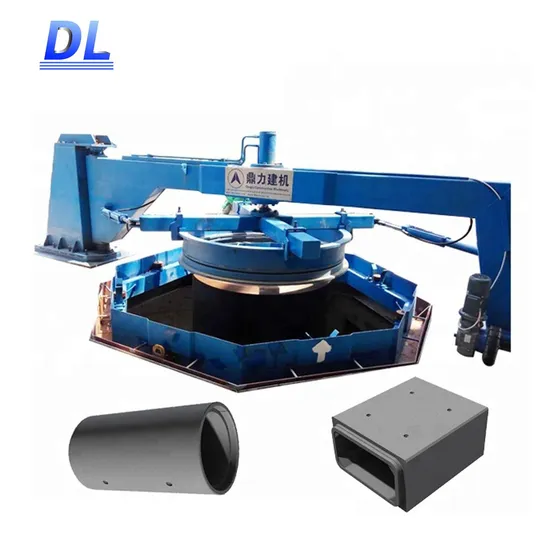

Concrete Box Culvert Making Machine Vibration Type

Product Description

Product Description
Vertical vibrating concrete pipe production line
Mainly include: concrete pipe machine, pipe mould, concrete batching plant, crane,wire cage weling machine
Vertical vibrating concrete pipe making machine is the most popular pipe machine present on the world.highest production efficiency and advanced technical design. manily include: main frame, pipe mould, core vibrator, chassis, automatic feeding system, hydralic rotary presser system, electric control system etc.
The whole pipe production line also need Crane and Concrete batching plant.
Main feature:
1. Instantly demould: one specificatin pipe production only need one set pipe mold(inner mould and outer moul)
2. Max 6000RPM High frequency vibrating,no need second processing. other company only 4000RPM.
3. Huade hydralic sytem. Q345 steel plate
4. 45# casting steel chassis.
5. The finishd concrete pipes there are higher strength and impactness.
6. Natural maintenance,save the boiler cost.
7. Could produce reinforced and non-reinforced concrete pipes with base and non-circular
8. Could produce anti-corrosion lining concrete pipes Detailed Photos
Product Parameters

Specification	Diameter		Length		Type		Mouth type
	Min	Max	Min	Max	Single	Double	Socket	Rabbet	F type
XZ2000	800	2000	1000	3000	Yes	Yes	Yes	Yes	Yes
XZ3000	1350	3000	1000	3000	Yes	Yes	Yes	Yes	Yes
XZ3600	1350	3600	1000	3000	Yes	Yes	Yes	Yes	Yes
Note: other specificatin could custome the machine according to customer's requirements.

Certifications

Packaging & Shipping

Company Profile
Gaotang Dingli Construction Machinery Co., Ltd. was founded in 2010,Dingli is professional in making high frequency vibration concrete pipe machine, vibration manhole machine, vibration box culvert equipment and other precast product molds. With the unique design and the creative designers' working, Dingli has achieved more than 30 patents of innovation, and has also been honored as the R&D center of technological enterprise of Shandong Province, one of the top ten best innovative enterprise in Liaocheng city and won the award of innovative prize of concrete product technology.
Based on the independent R&D design ability, we could work out the most competitive and innovative equipment for our client. With our 30 years experiences in concrete product and equipment manufacturing, our 100 employees have been making durable equipment that used for underground pipeline and sewer system. The high-quality equipment is exported to south-east Asia, Africa, mid-east, more than 30 foreign countries.
We aimed at making humanized and innovative equipment, take the win-win as our principle, adopt the perfectioinism QC system, and develop the best aftersales service to bring the bright new future for each of our client.

Our Advantages
1. with many years of industry experience
With professional design, production, quality management, after-sales service and other teams of continuous improvement equipment, as an outstanding enterprise in the industry, we have been adhering to the learning is the ladder of progress.
2. Production chain
Reasonable production chain, can be more efficient production, greatly shorten the production cycle.
3. Product quality
The use of high-quality raw materials processing and production, strict quality testing, to ensure product life.
After Sales Service
Different kinds of products are available in our company. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective!

---
