PP/PE Flexible Single Wall Corrugated Conduit Hose/Pipe Production Line

Product Description

Single wall and Double wall corrugated pipe making machine

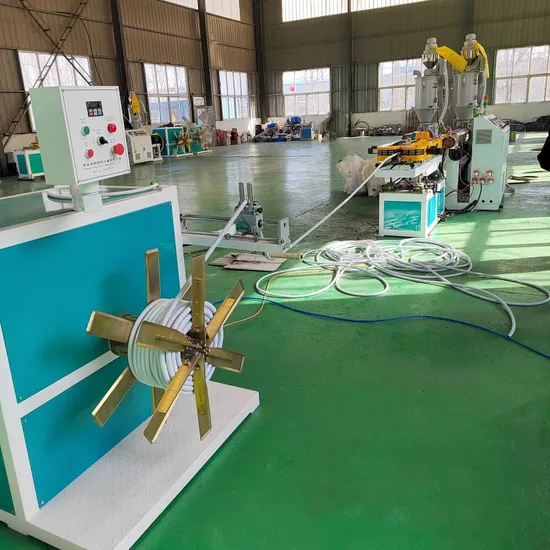

Single wall corrugated pipe machine
We have 13 years experience for the single wall corrugated pipe machine,our machines are suitable for the corrugated pipe range from 4.5mm to 160mm,our high speed type can reach 25m/min.We have sold more than 100 sets of corrugated pipe machines to 30 countries and regions
Plastic Single-wall Corrugated Pipe Extrusion Line
The machine to produce corrugated pipes of PE\PP\EVA\PVC\PA\nylon.This production line with good performance and reasonable price,it will be the best choice for your producing single-wall corrugated pipe.
1.Normal speed single wall corrugated pipe machine
This production line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.

Normal speed single wall corrugated pipe machine
Model	Pipe diameter	Extruder model	Motor powder	Production speed	Mold pairs	Vacuum pump(Optional)
14	5-14mm	SJ45/30	11KW	6-8m/min	42
32	10-32mm	SJ-50/33	15KW	5-12m/min	50	1.5kw
50	16-50mm	SJ-65/33	30KW	3-10m/min	50	2.2kw
63	16-63mm	SJ-65/33	30KW	3-10m/min	50	2.2kw
110	32-110mm	SJ-75/33	37KW	3-6m/min	72	5.5kw

2.High speed single wall corrugated pipe making machine
High speed single wall corrugated pipe making machine can produce PP/PE/PVC/EVA/PA material single wall corrugated pipe continuously.
We designed new technology,replace the traditional chain forming machine.The appearance and preceision of single wall corrugated pipe have improved greatly.
The production line is driven by gears,and the mould runs in the track.
It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.

High speed single wall corrugated pipe machine
Model	Pipe diameter	Extruder model	Motor power	Production speed	Mold pairs	Vacuum pump(Optional)
14	4.5-13mm	45/28	11kw	12-20m/min	63	1.5kw
50	10-50mm	65/30	30kw	10-24m/min	72	2.2kw

3. Double wall corrugated pipe production line
PE/HDPE/PVC double wall corrugated pipe extrusion line adopts extruding and forming process, it has the featuresof reliable quality and high efficiency.Compared with other plastic pipe wall structure ,double wall corrugated pipe has excellent wall structure design,its low weight reach the lower production cost and improve the market competitiveness.The pipe is widely used in various field instead of concrete pipe and iron pipes,because it has excellent features such as:easy connected and accessiories installed,and quality reliable.
Double - wall corrugated pipe production line can continuously produce HDPE double - wall corrugated pipe and this line can achieve on-line belling.
The machine has the function of automatic demoulding when power is off.
The extruder adopt high-efficiency screw, the die head adopts double-layer spiral structure, mould die and core die being nitrided
The forming machine adopts vacuum forming type, equipped with automatic lubrication system.Forming mould is made of aluminiumalloy, adopt water cooling type.
The pipe can be cut by on-line cutting machine automatically.
Machine technical data

Model	Pipe diameter	Extruder model	Motor power	Production speed	Mold pairs	(Optional) Vacuum pump
50	32-50mm	SJ65/30&50/30	30kw&15kw	4-5m/min	72pairs	5.5kw
110	50-110mm	SJ65/33&65/30	37kw&30kw	3-4m/min	72pairs	5.5KW
160	75-160mm	65/33&65/30	45kw&37kw	2-3.5m/min	72pairs	5.5KW
250	75-250mm	75/33&65/33	55kw&45kw	2-5m/min	72pairs	5.5KW*2set

Extruder for Double wall corrugated DWC pipe machine Quantity: two sets, Application: one is for outer wall,another is for inner wall. Model: SJ65/33, SJ60/30 Extruder type: single screw extruder Feeding: auto feeding with drying
Forming machine for DWC double wall corrugated pipe machine:
Type A: water cooling type, one machine can work for all sizes for 40-250mm. speed can be 3-5 m/min.
Type B, vacuum cooling type, speed 2-4m/min, one machine for 40-110mm, another machine for 110-250mm
Material : High quality mold iron
Slide rail: Equipped with silde rail processed under special way, and process high strength and good abrasion resistance.
Cooling systerm: High efficency cooling systerm could be gurantee the quality of forming.
Lubrication systerm: Equipped with centralized lubrication device, automatic quantitative lubrication.
Mold for DWC double wall corrugated pipe machine Based on the tube type requirements of the corrugated pipes, we have developed a vacuum forming system to ensure the production of various shaped pipes.Our single wall corrugated pipe machines can produce fixed length inlet pipes and drains for washing machines, and can produce shrinkable pipes with joints ,round and flat prestressed plastic corrugated pipes,etc.
We have professional mold design technicians,mold processing machines,machining center machines.We can design and process kinds of corrugated pipe module block,corrugated pipe joint module blocks,letter engraving module blocks and other types corrugated pipe block for any kinds of corrugated pipe according customer's requirements.All the module blocks are specialized grinding apparatus steel,which is of high hardness and strong wear resistance.
We have been committed to the research, continuous development and innovation of corrugated pipe production equipment.We can design and make the production lines according to customer requirements.Such as the corrugated pipe outer layer with coating production line,the corrugated pipe with steel line pass through device.
Electrical cabinet You can choose the PLC type controller
1,Main power will be controlled by PLC
2,the equipment will adopt industrial computer or operation display (with touch screen facility) and programmable logic control (that is IPC+PLC mode) to realize the line's synchronized running and the independent operation including alarm system.
3,The production operation and the parameter set including zone temp setting and display will be carried out through the touch screen display.
4,The production state collection and progress control will be realized on PLC, such as the motor start-up and stop, the given signal, Current, the motor speed and so on.
5,The Display will communicate with PLC, which can realize the production operation, the warning display, the line's emergency and other functions.
6,PLC based Synchronising system for the extruder and forming machine.
7,The display will be installed in the electrical cabinet, rationally and gracefully.
8,PLC (programmable logic control) will adopt high-quality Siemens series products
9,The machine will also adopt AC converters, air-switch, contactor and other main low-pressure products of Siemens products or other reputed suitable brand.
10,The machine will also adopt RKC, Japan temperature measuring unit or other suitable reputed brand.
11,The heat power control will have to be use by solid-state relays.
12,The power can be supplied from three-phase and five-wire syste
Packaging and shipping:
FAQ
Q1.How to pay to you? A:1)30% of total amount paid by TT as advance, then the seller start production
2)after the machine is finished ,buyer come to test the machine in seller's factory ,
and then pay the 70% balance by TT or irrevocable L/C at sight . Then seller ship the machine.
Q2.How long is the delivery time?
A: For standard machines, it would be 30 days; For non-standard machines and customized machines according
to client s specific requirements, it would be 45 days.
Q3.Do you arrange shipment for the machines?
A:Yes,for FOB or CIF price, we will arrange shipment for you.
Q4.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5.What's your after-sales service ?
(1)The supplier provides service manual and maintenance instruction of main electric appliances, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
(2)The supplier is responsible for installation, debugging and training, but the air tickets, insurance, eating, housing and every day 100 USD for each engineer will be born by the buyers. We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine leaves factory. And half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.

---
