Lenovo Thinksystem dB610s San Switch High-Speed Fiber Switch with 48 Ports Network Switch

Product Description

Product Description The Lenovo ThinkSystem DB610S 32Gb FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S FC SAN Switch is a compact 1U rack-mount switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
Product Parameters

Component	Specification
Machine type	6415
Form factor	Standalone or 1U rack mount
Ports	48x SFP+ physical ports 4x QSFP+ physical ports The number of ports that are activated is model dependent and can be upgraded with additional licenses - see the Port activation licenses section.
Media types	128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL) 4x 16 Gb FC QSFP+: SWL 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) 16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) 10 Gb FC SFP+: SWL, LWL
Port speeds	128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps 128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed 4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing 32 Gb FC SFP+: 32/16/8 Gbps auto-sensing 16 Gb FC SFP+: 16/8/4 Gbps auto-sensing 10 Gb FC SFP+: 10 Gbps fixed Note: With Fabric OS 9.0 and later, the 4 Gbps port speed is supported only on the F_Port and N_Port port types.
FC port types	Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, EX_Port (Requires an optional Integrated Routing License), D_Port (Diagnostic Port) Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Standard features	Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, 10 Gb FC, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics, In-flight Compression, In-flight Encryption
Optional features	Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric) or Mainframe Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric, FICON CUP), Integrated Routing
Performance	Non-blocking architecture with wire-speed forwarding of traffic: 4GFC: 4.25 Gbit/sec line speed, full duplex 8GFC: 8.5 Gbit/sec line speed, full duplex 10GFC: 10.51875 Gbit/sec line speed, full duplex 16GFC: 14.025 Gbit/sec line speed, full duplex 32GFC: 28.05 Gbit/sec line speed, full duplex 128GFCp: 4x 28.05 Gbit/sec line speed, full duplex Aggregated throughput: 2 Tbps Latency for locally switched ports is < 780 ns (including FEC); compression is 1 μs per node
Scalability	Maximum number of switches in the fabric: 239 Maximum frame size: 2,112-byte payload Maximum number of frame buffers per switch: 15,360 Maximum number of ports per ISL trunk: 8x SFP+ or 2x QSFP+ (Up to 256 Gbps; ISL Trunking license is included in the Enterprise or Mainframe Enterprise bundle)

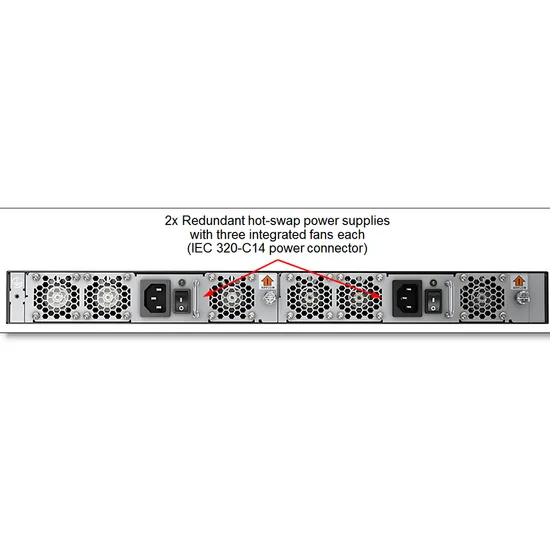

Cooling	Three fans built into each power supply; N+N cooling redundancy with two power supplies. Non-port to port side airflow.
Power supply	Two redundant hot-swap 250 W AC (100 - 240 V) power supplies (IEC 320-C14 connector).
Hot-swap parts	SFP+/QSFP+ transceivers, power supplies with fans.
Management ports	One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (Mini-USB Models HC7, HC8, HC9; RJ-45 for all other models); one USB port (for additional firmware/log/configuration files storage).
Management interfaces	Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View.
Security features	Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs)
Hardware warranty	One-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered.
Service and support	Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.
Firmware entitlement	Models HC7, HC8, HC9: One year of firmware entitlement Firmware entitlement extension licenses for Models HC7, HC8, HC9 are included in the warranty service upgrades.
Dimensions	Height: 44 mm (1.7 in.); width: 440 mm (17.3 in.); depth: 356 mm (14.0 in.)
Weight	Empty: 7.7 kg (17.0 lb); Fully configured: 8.5 kg (18.8 lb).

Company Profile Liaoning Sicheng Technology Co., Ltd., formerly known as Shenyang Sicheng Technology Co., Ltd., was established in 2003 and is headquartered in Shenyang, Liaoning Province. Sicheng Technology is mainly engaged in the wholesale of computer software, hardware, and auxiliary equipment, the retail of computer software, hardware, and auxiliary equipment, the sales of office equipment, and so on.
Sicheng Technology mainly sells computer products including servers, storage system equipment, and computer workstations. The product brands we operate mainly include Lenovo, Inspur, and H3C, all of which are well-known computer equipment R&D and manufacturing companies in China and even around the world.
Sicheng Technology has been engaged in the sales of computer equipment for more than 20 years and has rich industry experience and solutions, including finance, medical care, industrial manufacturing, education, and government. We provide one-stop solutions, from system design, customized manufacturing of equipment, and equipment installation guidance, to system equipment commissioning and maintenance.
We are committed to providing intelligent solutions for all walks of life. Our partners include Wanda Group, Evergrande Real Estate, Jinwanma Technology, FAW Group, etc.
We adhere to the Management Principles of "Quality First, and Cred, and Cred It-based" since the establishment of the company and always to satisfy the potential needs of our customers Our company is sincerely willing to cooperate with enterprises from all over the world To realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Main Brand The product brands we operate mainly include Lenovo, Inspur, and H3C, all of which are well-known computer equipment R&D and manufacturing companies in China and even around the world.
Certifications Lenovo, Inspur, and H3C authorization certificate
Application Our servers are widely used, and the main application fields include government agencies, educational institutions, manufacturing, telecommunications, power, energy, transportation, medical care, Internet, and finance.

Packaging & Shipping
FAQ Q: What brand of products do you offer?
A: We can supply all the brands you need.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB, CFR, EXW, FCA;
Accepted Payment Currency: USD, EUR, CAD, HKD, GBP, CNY;
Accepted Payment Type: T/T, MoneyGram, PayPal, Western Union, Cash, etc...
Q: Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q. How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A: Yes, We have professional engineers to test all devices before shipping.
Q: How about the MOQ?
A:1 piece

---
