3+1 Axis CNC Bridge Saw, Miller, Stone Cutting Machine

Product Description

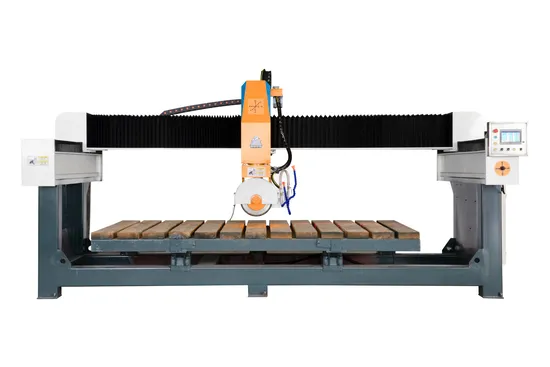

3+1 axis CNC bridge saw ,miller , stone cutting machine
It adopts PLC and touch screen control system, simple to operate,Easy to install . The machine structure is integrated, with small area .
It used for processing materials such as marble, granite, quartz, ceramics, porcelain, etc.
The main components: imported accessories, servo motors, PLC,touch screen.
The machine head can rotate at any angle between 0-90 degrees. The workbench can be flipped 85 ° and also includes 45 ° chamfer . Working: Cross cutting. Vertical cutting. Open a square basin. L-shaped.
1.OEM/ODM Optional
2,Support English ,Vietnamese,Spanish ...
3.45 ° chamfer

Saw blade diameter	Φ350-Φ400 MM
Max.working dimensions(L*W*H)	3180*1980*80 MM
Workbench dimensions(L*W)	3100*1900 MM
Workbench tilting degree	0°-85°
Head rotating degree	0°-45°-90°
Head chamfering rotation	0°-45°
Main motor power	11 KW
Total power	12.5-14.5 KW
Water consumption	3.5 m³/h
Machine weight	3500 KG
Trolley dimension(L*W*H)	4800*2650*2600 MM

---
