Af88g Rice Wheat Corn Cotton Combine Harvester 80HP 100HP 120HP 150HP 180HP 200HP Harvesters and All Kinds of Farm Machines

Product Description

Product Description
Combine harvester configured is to efficiently rake, using a raking auger. The ear-tip side part of divider-side grain stems harvested using a cutting blade device, and to prevent damage to the divider. A combine harvester according to the present invention is provided with a divider, a raking reel, a cutting-blade device, a raking auger, a platform, and a conveyor, wherein the combine harvester is characterized in that the raking auger is composed of a cylindrical drum, helical blades projecting from the outer circumferential surface of the drum, and being capable of lateral movement for orienting the grain stems to the conveyor, and a plurality of rod-shaped raking fingers capable of radially extending and retracting from the outer peripheral surface of the drum for guiding the grain stems to the conveyor. At least one of the fingers being provided in a position on the drum aligned within two pitches of receiving blades from the outermost effective receiving blade of the cutting-blade device end section to the inner side in plan view.
Product Parameters

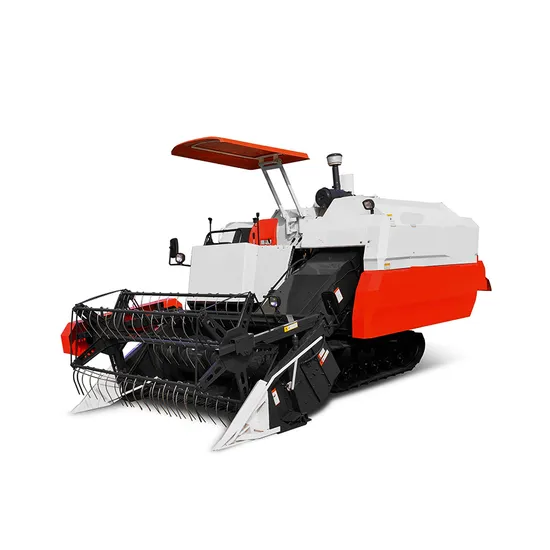

Full Feeding Combine Hrvester AF88G
Product Model			AF88G
Overall dimensions	Length(mm)		5160
	Width(mm)		2750
	Height(mm)		2750
Weight(kg)			2970
Engine	Model		Dachai-DEUT ZCA498Z-09T2/01
	Structure type		Four-stroke,water-cooled, turbocharged diesel engine
	Rated power(kW)		65/88HP
	Rated speed(rpm)		2400
	Fuel type		Diesel(0#)
	Fuel tank(L)		95
Walking part	Track	Specification link	500*90*51
	Min ground clearance(mm)		325
	Gearbox type		HST
	Transmission type		(HST+3-gear) continuously variable-speed
	Theoretical traveling speed(km/h)		Low speed 0-3.96,Standard 0-5.14, Walk speed 0-7.37
Header system	Header width(mm)		2000
Threshing part	Threshing type		Vertical type axial-flow bar tooth type
	Threshing cylinder	Outer diameter(mm)	φ620*1790
		Rotate speed(r/min)	580
Grain unloading part	Grain tank capacity(L)		1400
	Unloading grain rotation range(Degree)		270
	Unloading grain height range(mm)		920-4200
Electrolyte and others	Battery	Voltage(V)	12
	Starting relay	Rated current(A)	50
		Vilotage(V)	12
	Hydulic oil tank volume		21
Hourly production(hm2/h)(Vertical dry field crops environment)			0.3-0.7
