4 / 8 FT Plywood Production Line with Rotary Cutting Production Line

Product Description

Product Description

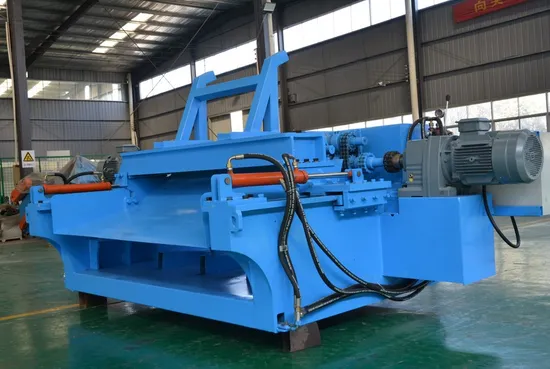

4'Spindles Debarker

Max. working diameter	500mm
Single roller diameter	150mm
Double roller diameter	180mm
Debarking speed	57M/min
Single roller motor	7.5kw X 1
Double roller motor	11kw X 1
Hydraulic motor power	5.5kw
Control	Hydraulic control
Overall size	3500*2150*1500mm
Weight	About3200KG

8'Spindles Debarker 8

Max. working diameter	500mm
Single roller diameter	150mm
Double roller diameter	180mm
Debarking speed	57M/min
Single roller motor	7.5kw X 2
Double roller motor	11kw X 2
Hydraulic motor power	7.5kw
Control	Hydraulic control
Overall size	4600*2200*1600mm
Weight	Abou5200KG

15 opening veneer press dryer

1	Working pressure	200 TONS
2	working layer	15
3	Number of hot platen	16
4	layers distance	70mm
5	Hot platen size	2700×1370×42 WITH ENGRAVING TWO INLET AND TWO OUTLET
6	heating method	Heat from boiler
7	board input	8' side input
8	cylinders	Φ220×2
9	cylinder STROKE	1050mm
10	working oil pressure	26 Mpa
11	top beam	750mm
12	bottom beam	750mm
13	middle beam	350mm
14	frame Thickness	30mm
15	power	18.5kw+5.5KW
16	control method	PLC PROGRAMMED
17	weight	About 28000KGS

500T DOWNWARDS COLD PRESS

Nominal Pressure	500 tons
Frame thickness	35mm
Welded frame
Press board (mm)	2700*1370
Max working stroke	1050 (mm)
Opening distance	1600 mm
Top beam (mm)	900
Bottom beam (mm)	900
Working Pressure	18-20 Mpa
Main Cylinder	2*360mm
Side lifting cylinder	2*80mm
Close speed	20-30 seconds
Total power	11kw+3 kw
Weight	15000 kgs
Overall dimensions (mm)	3550*1370*4200

600T 20 OPENINGS HOT PRESS

No.	Specification
1	Nominal Pressure	600 Tons
2	Working oil Pressure	18-20 mpa
3	Frame thickness	40mm
4	Composite structure
5	Top beam (mm)	900
6	Bottom beam (mm)	900
7	Middle beam	450
8	Hot Press plate (mm)	2700*1370*42mm
9	Finish piece dimension	4' * 8'
10	Opening	20
11	Floor number	21
12	Layers distance	70mm
13	Heating method	Steam or heating oil
14	Board input	8' side
15	Control method	Automatic control panel
16	Main Cylinder Lifting cylinder	2*400mm Wuxi 1X160mm
17	Cylinder working distance	1400mm
18	Total power (Kw)	22KW+200L/MIN VANE PUMP 7.5KW+10L/MIN PUMP
19	Weight	Approx. 40000 Kgs
20	Overall dimensions (mm)	3550*1370*4950

GLUE MIXER

	Specification
power	15KW+1.5KW
Speed (RPM)	Speed adjustable motor
weight	700kgs
DRUM SIZE	DIA: 800 H: 750MM 4 pcs
CAPACITY	ABOUT 300KGS
LIFTING HEIGHT	1300MM

9' Pneumatic Glue spreader with conveyor

Model number	Φ410 four-roller glue spreader
Assembly form	Front and back or up and down assembly
Glue form	Double sided
transfer method	gear drive
Main moving roller diameter (mm)	Φ415 with silk grain
Rubber roller length (mm)	2700
Diameter of squeezing roller (mm)	Φ296 (Plating 5 wires)
Glue machine motor	7.5KW-4
Conveyor motor	0.75kw-6
Voltage	380 volts
Reducer	4#
Inverter (gluing machine)	7.5KW
Inverter (transfer rack)	1.5KW
Glue machine weight (KG)	5600
Weight of transfer rack (KG)	360
Dimensions (M)	Length: 4.3M Width: 1.6M Height: 1.8M

SANDING MACHINE HEAVY DUTY

	BSGX2313 R-RP
Max.working width	1300mm
Working thickness	2.5-80mm
Sanding length	>500mm
Size of abrasive belt	1330×2200mm
Working air pressure	0.6-0.8Mpa
Speed of abrasive belt	22,16m/s
Speed of feed belt	7.5-37m/min
Motor for sanding head	37kw for steel roller (diameter: 270mm with heating treatment) 30/22kw for pad polishing (diameter 240mm with 65-70# hardness)
Motor for feeding	5.5kW gearbox with mechanical adjustment
Side beam for rollers	Cast
Conveying table	Machined steel plate with heat treatment
Electronic parts	Siemens
Motor for brush	0.37kW
Motor for lifting	0.37kW
Overall dimensions[L×W×H]	2500×2000×2100mm
Total weight	4500kgs

BSGR-1300 calibration sanding machine
1st Steel roller diameter: 400mm Wall thickness: 42mm
Frame wall thickness: 25mm
Bearing: NSK Japan
Inverter: Mitsubishi/Siemens
Conveying belt: Dutch made with air blowing system
Pneumatic parts: Airtech
Sensor: Omron
Triangle belt: Taiwan made
Main motor: 75kw Huali
Conveying motor: 7.5kw
Lifting motor power: 0.75kw
Brushing motor power: 0.75kw
Working thickness: 2.0-100mm
Working speed: 0-100m/min
Sanding belt: 1350*2800mm
overall size: 2200*2800*2200mm
Weight: about 7.0 tons
Detailed Photos

Company Profile

Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 20 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
