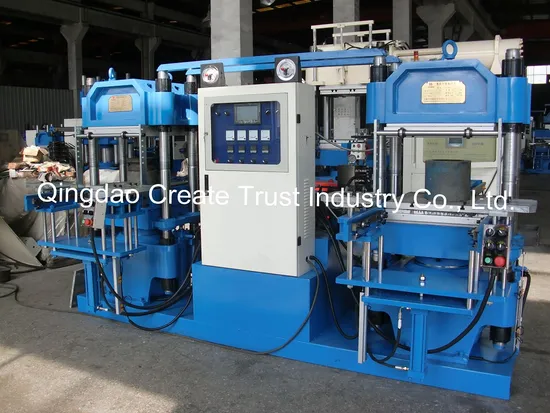

Rubber Hydraulic Moulding Machine, Rubber Molding Machine

Product Description

Rubber Hydraulic Moulding Machine,Rubber Molding Machine
We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3.Piston:
the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

Service of us:D:our company with 30 years' experience in manufacturing rubber machine
1.special manufacturer with more than 30 years of experience of exporting ability that has professional producing team and technical support
2.Exclusive and unique solution can be provided to our customer by our well-trained and professional
engineers and staff.
3.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client and train your workers for free in case of any problems occur and reply you within 12 hours.
4.high quality ,reasonable price and flexible delievery time
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
