1325 CNC Router for Cutting and Carving Various Materials Woodworking Paper Leather Fabric

Product Description

CCD CNC router capable of cutting and carving various materials wood, stone, acrylic, PVC, leather, paper, and fabric 04
Product Description

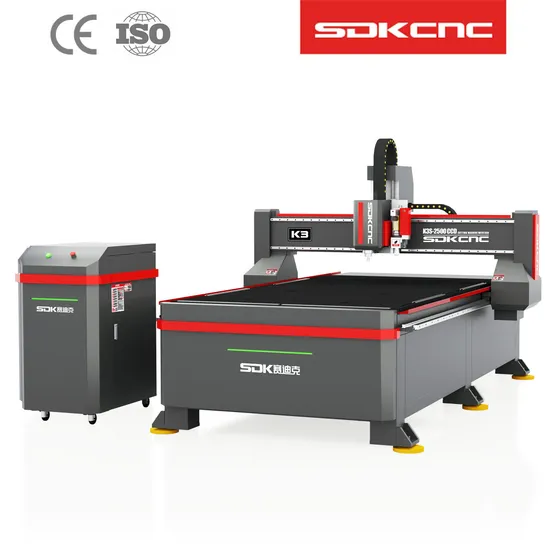

Δ K3S-2500 CCD is a multifunctional engraving and cutting machine independently developed and produced by SDKCNC.It adopts 4-6 axes CNC edge control system,and at the same time, it has the function of high-speed engraving for plates and high-speed cutting for flexible materials.This machine's versatility allows it to handle various types and thicknesses of materials during processing,providing greater flexibility and efficiency. accommodating various file formats like PLT/DXF/EPS from prominent CAD/CAM software such as AUTOCAD,UG,AI,and more.
Δ Its robust architecture, forged from thick-walled steel with a meticulously welded bed,undergoes a thorough time stress relief process.This not only ensures enduring durability but also guarantees a stable foundation for its long service life.The whole machine adopts hybrid Servo Drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack,straight guide rail, silent screw rod.Moreover,its steel structure beam and the inclusion of a 3.2KW water-cooled main spindle and electric oscillating knife,spinning at 32000RPM,signify its capacity for high-performance operations.The universal knife holder supports a wide range of knives.
Δ K3S-2500 CCD can engrave and cut wood, stone, PVC, acrylic, ABS, epoxy resin board, bakelite board and other materials at high speed, as well as leather, paper, textile fabrics.Standard CCD edge patrol component, Cutting without leaving white edges with one step.Suitable for advertising signs, industrial products, model display and other industries, especially suitable for small quantities of complex edges and shaped edges for sampling, to achieve a multi-purpose machine.
Detailed Photos
01 BED STRUCTURE
Heavy duty welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
hybrid Servo Drive,Y-axis dual motor drive,
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 3.2 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
07 CCD SYSTEM
High resolution CCD camera element positioning, industrial edge cruising motion control system, can automatically correct the offset of the plate. And it can intelligently obtain the edge, one-click without white edge cutting.
08 UNIVERSAL TOOL HOLDER
The universal knife holder supports a wide range of knives, such as electric oscillating knife, pneumatic oscillating knife, offer-centered drag knife, half-cutting knife, creasing wheel knife, etc....

Product Parameters

Technical Parameter
Working Area	1300 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	3.2Kw (1-24000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Control system	Industrial 4-6-Axis Edge Patrol Motion Control System
CCD	High Resolution CCD System
Drive motor	Hybrid Servo Drive
Type Name	K3-2500 CCD
Working Table	Phenolic resin suction clip intergrated table
Vacuum Pump	5.5KW
Universal tool holder	tool holder *1 (Standard electric vibrating knife)
Support Tool Types	Support Tool Types Electric Oscillating Knife, Pneumatic Oscillating Knife, Offer-Centered Drag Knife, Kiss Cutter, Creasing Wheel Knife
Hard Material Carving	Wood, Stone, Acrylic, Pvc, Plastic Board, MDF,..
Flexible Material Cutting	Leather, Paper, Fabric, Self-Adhesive

Application Industry
Δ The universal knife holder supports a wide range of knives, such as electric oscillating knife, pneumatic oscillating knife, offer-centered drag knife, half-cutting knife, creasing wheel knife, etc....
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.it can also process various flexible rolls, such as leather, self-adhesive, paper, fabrics, etc. One machine for multiple purposes
Δ Normally apply to advertisement logo,sliding door ,packaging ,furniture,showcase,architectural models,metal signs .Suitable for processing various hard boards.CCD system as standard, especially suitable for processing and production of small batches of complex shapes and irregular edges.
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.

---
