Ck6152e High Precision Flat Bed CNC Turning Lathe

Product Description

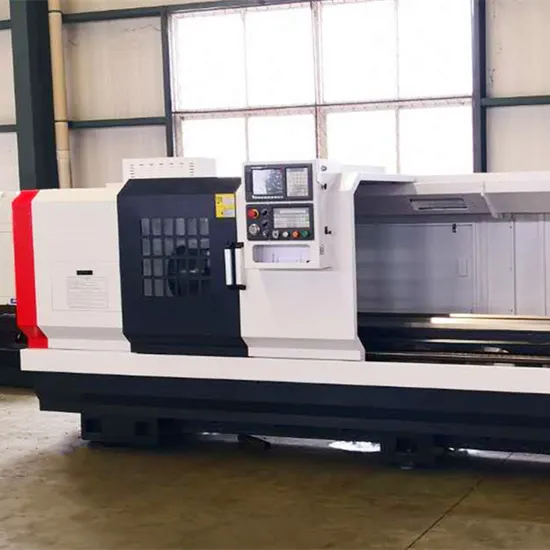

Product Picture
Specification Parameter

Specification	Unit	CK6152E	CK61100E
Swing over bed	mm	530	1000
Swing over cross slide	mm	280	650
Max. turning dia. (disc type)	mm	520	1000
Max.workpiece length	mm	1000/1500/2000/3000	1500/2000/3000
Max. turning length	mm	825/1325/ 1825/2825	1400/ 1900/2900
Spindle nose	/	A2-8	A2- 15
Spindle bore dia.	mm	90	130
Spindle taper	/	Metric 100/ 1 :20	Metric 140/ 1:20
Spindle speed	rpm	30- 150,90-450,315-1600	10-60,40-240, 100-600
Chuck type	/	Manual	Manual
Chuck size	Inch	10	18
X/Z axis rapid traverse	m/min	6/8	4/5
X axis travel	mm	300	530
Z axis travel	mm	1000/1500/2000/3000	1000/1500/2000/3000
Guide way type	/	Hard rail	Hard rail
Tailstock sleeve dia.	mm	75	140
Quill traverse	mm	150	250
Quill taper	/	MT5	MT6
Tool post capacity	/	4 station	4 station
Cutting tool shape size	mm	25*25	40*40

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
