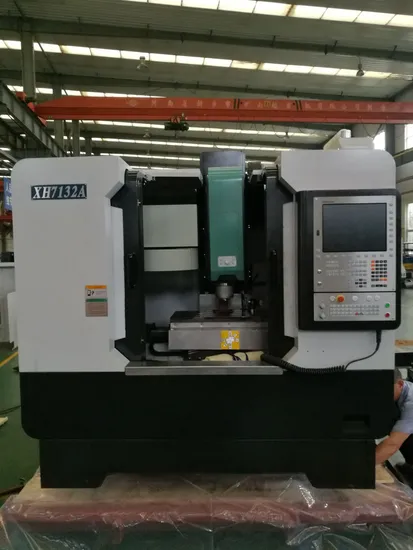

Economic Vertical Machining Center Vmc Machine Tool

Product Description

The vertical machining center is X, Y, Z three-axis servo control half closed loop, structure and the overall size is compact and reasonable, the spindle adopts servo motor driven. Can be achieved for a variety of a complex parts such as disc, plate, shell,cam, mould, once clamping complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties,medium or small batch production, for complex, high precision parts processing can show its superiority.
2.Structure feature
1)The main foundation parts such as pedestal, sliding seat, table, column, spindle box with high rigid iron structure, reinforcement is distributed internal of the base, sliding seat is box type structure. Ensure the basic pieces of high rigidity and resistance bending vibration performance; The main foundation parts with resin sand molding and after aging treatment, ensure the stability of the precision machine tool use for a long time.
2)The X, Y, Z guideway are all linear guideway, automatic forced lubrication, to achieve the high speed movement of the machine tool;
3)Feeding of X, Y, Z directions adopts ball screw with high accuracy high strength, the speed is high;The drive motor is directly connected with the ball screw through the elastic coupling , feeding servo motor directly transmission of power to the high-precision ball screw, have no back gap, to ensure the positioning accuracy and synchronization of the machine tool;
4)Spindle unit from Taiwan famous brand with high speed, high precision, high rigid, axial and radial capacity is strong, velocity 8000rpm;
5)Spindle with blowing center, high pressure gas immediately clean the inner taper of the spindle after the spindle loosen tool, ensure the clamping accuracy of cutting tool;
6)The guideways and the ball screws of the X, Y, Z three directions enclosed protection ,ensure the cleanness of ball screw and guideway, ensure the transmission and motion precision of machine tools;
7)Adopts high pressure water stampings with automatic spiral chip removal device, automatic remove chip, high efficient, reduce the labor intensity of operators;

Specification			unit	XH7132A	XK7132A
Spindle		Taper		BT30(Or BT40)	BT30
		Pullstud		GB/T10944.3-JF30-45(45 degree)	GB/T10944.3-JF30-45(45 degree)
		Speed	r/min	100-10000	100-10000
		Spindle nose to work table	mm	120-520	120-520
		Spindle center to column guideway face	mm	360	360
Table		Table size	mm	800*320	800*320
		T-slot No./width/distance	mm	3-14*100	3-14*100
		Max. loading of table	Kg	350	350
Guideway		Guideway type		Are all linear guideway	Are all linear guideway
		Width of single of X/Y/Z	mm	30/30/35	30/30/35
Ball screws		X-axis	mm	25*6	25*6
		Y-axis	mm	25*6	25*6
		Z-axis	mm	32*8	32*8
Travel		X-axis	mm	500	500
		Y-axis	mm	320	320
		Z-axis	mm	400	400
Moving		Rapid moving of X	m/min	18	18
		Rapid moving of Y	m/min	18	18
		Rapid moving of Z	m/min	18	18
Tool magazine		type		Umbrella type (option:arm type)
		Tool number		10 (option:20)
		Max. diameter of tools	mm	For standard 10T: 60(neighbour)/120(neighbour no tool)
		Max. length of tools	mm	200	200
		Max. weight of tools	kg	5	5
		Speed of changing tool(tool to tool)	s	6	6
cooling		Cooling pump power	w	370	370
		Cooling flow	L/min	25	25
		Cooling tank volume	L	100	100
Lubrication type				auto	auto
Position accuracy of X/Y/Z			mm	±0.01		±0.01
Re-position accuracy			mm	±0.005		±0.005
Power type	AC voltage		V	As required
	frequency		HZ	50Hz or 60Hz
The total capacity of electricity utilization			kva	12		12
Air pressure			MPa	0.5-0.7		0.5-0.7
Weight			Kg	3000		2900
Overall dimension (L*W*H)			mm	1600*1840*2110mm		1600*1840*2110mm

3. Standard configuration
1)Spindle BT40/8000rpm from Taiwan
2)Fanuc 0i MF(5) CNC system
3)Spindle servo motor 5.5Kw,torque 26Nm,
4)MPG(manual pulse generator)
5)Z axis rigid tapping
6)External cooling system (including chip pans, cooling tank, cooling pump,cooling pipe);
7)Automatic spiral type chip removal device;
8)external air cooling;
9)Umbrella type tools magazine with 10tools(XK7132A without)
10)Full metal protection shield and inner ball screws,guideway metal protection shield;
11)Adjust the iron pad;
12)Work lamp;
13) Alarm lamp;
4. XH7132A Optional configuration
1) FAUNC OI MF(1)/Mitsubishi/Siemens/GSK/HNC-21MD CNC system
2) air gun;
3) BT40 arm type A.T.C with 16T from Taiwan
4)4-th axis;
5)10000rpm spindle unitc;

---
