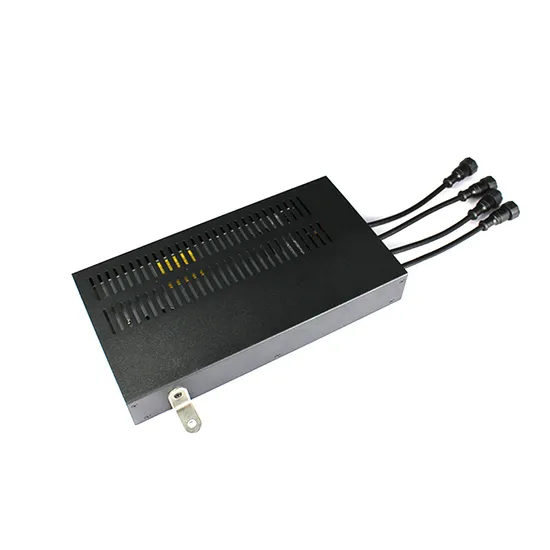

12V 24V200W/350W/450W/600W Power Supply Pixels Light Supply Artnet A220V

Product Description

Product Parameters

	Model	LRS-350-3.3	LRS-350-4.2	LRS-350-5	LRS-350-12	LRS-350-15
Output	DC Voltage	3.3V	4.2V	5V	12V	15V	24V
	Rated Current	60A	60A	60A	29A	23.2A	14.6A
	Current Range	0 ~ 60A	0 ~ 60A	0 ~ 60A	0 ~ 29A	0 ~ 23.2A	0 ~ 14.6A
	Rated Power	198W	252W	300W	348W	348W	350.4W
	Ripple&Noise(max.) Note 2	150mVp-p
	Voltage ADJ. Range	2.97 ~ 3.6V	3.6 ~ 4.4V	4.5 ~ 5.5V	10.2 ~ 13.8V	13.5 ~ 18V	21.6 ~ 28.8V
	Voltage Tolerance Note.3	±4.0%	±4.0%	±3.0%	±1.5%	±1.0%	±1.0%
	Line Regulation Note.4	±0.5%
	Load Regulation Note.5	±2.5%	±2.5%	±2.0%	±1.0%	±0.5%	±0.5%
	Setup, Rise Time	1300ms, 50ms/230VAC 1300ms, 50ms/115AVC at full load
	Hold UP Time(Typ.)	16ms/230VAC 12ms/115VAC at full load
Input	Voltage Rance	90 ~ 132VAC / 180 ~ 264 VAC by switch 240 ~ 370 VDC (switch on 230VAC)
	Frequency Rance	47 ~ 63Hz
	Efficiency(Typ.)	79.5%	81%	83.5%	85%	86%	88%
	AC Current(Typ.)	6.8A/115VAC 3.4A/230VAC
	Inrush current(Typ.)	60A/115VAC 60A/230VAC
	Leakage current	<2mA/240VAC
Protection	Over Load	110 ~ 140% rated output power
		3.3~36V Hiccup mode, recovers automatically after fault condition is removed. 48V Shut down and latch off o/p voltage, re-power on to recover.
	Over Voltage	3.8 ~ 4.45V	4.6 ~ 5.4V	5.75 ~ 6.75V	13.8V ~ 16.2V	18 ~ 21V	28.8 ~ 33.6V
		3.3~36V Hiccup mode, recovers automatically after fault condition is removed. 48V Shut down and latch off o/p voltage, re-power on to recover.
	Over Temperature	3.3~36V Hiccup mode, recovers automatically after fault condition is removed. 48V Shut down and latch off o/p voltage, re-power on to recover.
Function	Fan ON/OFF control(Typ.)	RTH3>=50ºC FAN ON, <=40ºC FAN OFF
Environment	Working Temp	-25 ~ +70ºC (Refer to "Derating Curve")
	Working Humidity	20 ~ 90% RH non-condensing
	Storage Temp., Humidity	-40 ~ +85ºC 10 ~ 95% RH
	Temp. Coefficient	±0.03%/ºC (0 ~ 50ºC)
	Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety	Safety Standards	IEC/UL 62368-1, BSMI CNS14336-1, BS EN/EN60335-1,EAC TP TC 004,KC K60950-1(for LRS-350-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved; Design refer to BS EN/EN62368-1
	Withstand Votage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25ºC/ 70% RH
	EMC Emission	Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-350-12/24 only)
	EMC Immunity	Compliance to EAC TP TC 020,KC KN32,KN35(for LRS-350-12/24 only)
Others	MTBF	327.9K hrs min. MIL-HDBK-217F (25ºC)
	DIMENSION	215*115*30mm (L*W*H)
	Packing	0.76Kg; 15pcs/12.4Kg/0.78CUFT
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor.

Related Products

Application:
Company Profile
Shenzhen Ledcolourlight Technology Co., Ltd is a high-tech business of focusing on LED entertainment lighting and outdoor lighting which have intergrating the R&D,production,sale and service of the LED control system and lighting solution provider. Welcome to visit our company,workshop and showing room.Our products cover editing software and control system. Our DMX meteor tube, DMX strip, DMX 3D ball, DMX panel, DMX dot, DMX pixel are popular for the stage, nightclub, bar, events, and rental. Our DMX wall washer, DMX floodlight. DMX underground light, DMX Fountain light, DMX linear lights, and street light are widely applied to the theme park, hotel, business center city lighting, and so on.
Packaging & Shipping
FAQ
1. Q: Are you a factory or trading company ? A:we are a factory as a munufacturer. 2. Q: What your company produces mainly ? A: Ledcolourlight mainly specilized in DMX Lighting products, and also provide a full dmx lighting solution for projects. 3. Q: How can I get some samples ? Delivery time for samples? A: If samples in stock, can be sent out right away. If no samples in stock, take 3-7 business days for production. 4. Q: MOQ?
A: 2 pieces per one model at least. 5. Q: OEM and ODM available? A: Yes. 6. Q: Delivery time for big order? A: For small order, 3-7 business days. For big order, 12-20 business days. 7. Q: Payment Terms?
A: PayPal (Less than 500USD), T/T, Western Union, L/C 8. Q:Warranty? A. All products we sell are in good quality and have been tested before they are shipped out. We offer 2 years Warranty 9. Q:How About I had never bought any product from China? A: We will guide you step by step, any possible potential cost will be listed, and provide all info if needed.

---
