Multi-Axis Control Safety Protection Wc67K Torsion-Sync Economic Nc Press Brake

Product Description

Product Description

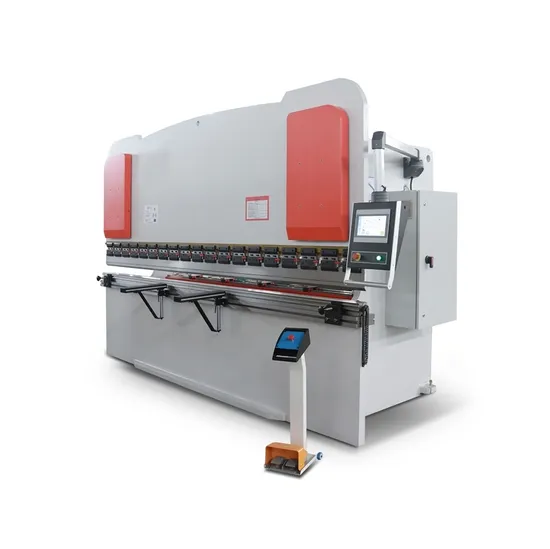

WC67K Torsion-Sync NC Press Brake
The NC press brake's robust construction ensures durability and long-term performance, even in the most demanding production environments. The NC press brake is an economical hydraulic bending machine with a competitive price, straightforward installation, easy operation, and handy after-sales service. These advantages have rendered the NC press brake a favored option in the global market.Moreover, the NC press brake is equipped with a user-friendly interface that allows operators to program and adjust settings with ease. This minimizes the learning curve and increases productivity, as operators can quickly become proficient with the machine. The availability of various bending tools and accessories further enhances the machine's versatility, making it suitable for a wide range of applications from simple to complex.After more than a decade of iterative updates, CNHAWE's electro-hydraulic servo control technology has reached a new level. Looking at the entire industry, the deep integration of this technology with press brakes has created a new era and continues to drive the development of the sheet metal fabricating industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Main Motor	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	KW	Ton	L*W*H (mm)
30t/1600	300	1600	80	120	17	160	1300	200	80	320	5.5	2.3	1650*1200*1700
30t/2000	300	2000	100	140	17	160	1600	200	80	320	5.5	2.5	2000*1200*1700
40t/2500	400	2500	170	110	15	90	2030	250	100	340	5.5	3.5	2500*1200*1900
63t/2500	630	2500	170	100	10	70	2050	250	120	340	5.5	4.5	2500*1350*2100
63t/3200	630	3200	170	120	10	70	2510	250	120	340	5.5	5	3200*1350*2100
80t/2500	800	2500	170	110	10	80	2050	250	120	350	5.5	6	2500*1400*2150
80t/3200	800	3200	170	130	10	80	2510	250	120	350	5.5	6.2	3200*1400*2150
100t/2500	1000	2500	260	90	7.5	70	2050	320	160	420	7.5	6.5	2500*1500*2200
100t/3200	1000	3200	260	100	7.5	70	2510	320	160	420	7.5	7	3200*1500*2300
100t/4000	1000	4000	260	120	7.5	70	3100	320	160	420	7.5	8.5	4000*1750*2590
125t/3200	1250	3200	260	95	7	65	2510	320	160	420	7.5	7.5	3200*1600*2350
125t/4000	1250	4000	260	110	7	65	3100	320	160	420	7.5	9.5	4000*1600*2450
125t/5000	1250	5000	260	120	7	65	3800	320	160	420	7.5	9	5000*1600*2450
125t/6000	1250	6000	260	130	7	65	4600	320	160	420	7.5	11	6000*1600*2450
160t/2500	1600	2500	260	100	10	100	2050	350	200	470	11	12	2500*1650*2700
160t/3200	1600	3200	260	110	10	100	2510	350	200	470	11	14.5	3200*1650*2800
160t/4000	1600	4000	260	120	10	100	3100	350	200	470	11	19.5	4000*1650*2800
160t/5000	1600	5000	260	130	10	100	3800	350	200	470	11	13.5	5000*1750*3100
160t/6000	1600	6000	260	140	10	100	4600	350	200	470	11	11.5	6000*1750*3300
200T/3200	2000	3200	435	110	10	100	2510	350	200	470	15	15	3200*1650*2800
200T/4000	2000	4000	435	120	10	100	3100	350	200	470	15	12.5	4000*1650*2800
200T/5000	2000	5000	435	120	7	80	3800	350	250	540	15	19	5000*1950*3100
200T/6000	2000	6000	435	120	7	80	4600	350	250	540	15	21	6000*1950*3100
250T/3200	2500	3200	435	90	9	100	2600	400	250	580	18.5	17	3300*2100*3150
250T/4000	2500	4000	435	100	9	100	3300	400	250	580	18.5	20	4000*2100*3150
250T/5000	2500	5000	435	110	8	100	3800	400	250	580	18.5	23	5000*2100*3200
250T/6000	2500	6000	540	120	8	100	4600	400	250	580	18.5	25.5	6000*2100*3200
300T/3200	3000	3200	540	90	8	75	2600	400	250	580	18.5	21	3200*2200*3200
300T/4000	3000	4000	540	100	8	75	3100	400	250	580	18.5	23	4000*2200*3200
300T/5000	3000	5000	550	110	8	75	3800	400	250	580	18.5	25	5000*2200*3200
300T/6000	3000	6000	560	130	8	75	4600	400	250	580	18.5	27.5	6000*2200*3200
400T/4000	4000	4000	540	70	7	60	3100	400	250	580	22	26	4000*2400*3200
400T/5000	4000	5000	550	90	7	60	3800	400	250	580	22	32	5000*2400*3200
400T/6000	4000	6000	550	100	7	60	4400	400	250	580	22	35	6000*2400*3200
500T/4000	5000	4000	620	70	6	55	3100	500	320	620	30	33	4000*2650*3200
500T/5000	5000	5000	620	90	6	55	3800	500	320	620	30	37.5	5000*2650*3200
500T/6000	5000	6000	620	120	6	55	4410	500	320	620	30	43.5	6000*2700*3200
500T/7000	5000	7000	620	130	6	55	5400	500	320	620	30	55	7000*2700*3200
600T/4000	6000	4000	650	80	6	65	3100	500	320	620	37	45	4000*2700*3200
600T/5000	6000	5000	650	90	6	65	3800	500	320	620	37	48	5000*2700*3250
600T/6000	6000	6000	650	110	6	65	4600	500	320	620	37	55	6000*2700*3300
600T/7000	6000	7000	650	120	6	65	5400	500	320	620	37	62	7000*2900*3500

Detailed Photos
Torsion-Sync Bar
Using high-strength steel, the synchronous torsion bar controls the vertical movement of the slider. It has the advantages of simple structure, high strength, and low maintenance cost, making the NC series press brake stable and reliable, capable of producing many rough and precision sheet metal fabrication parts.Controller
The high-definition LCD screen of E21 controller supports bilingual Chinese and English, and displays programming parameters on one page, making programming faster and more convenient. Intelligent positioning of X and Y axes supports manual adjustment, eliminating the need for mechanical hand-operated positioning devices.All buttons on the panel are micro switches and have been strictly tested for EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product. CE certification support overseas markets. Back-gauge
Our machines boast a meticulously crafted rear stop assembly, independently engineered for supreme precision. This feature includes an adjustable stop finger and manual lifting function, complemented by a high-precision ball screw. Such design versatility ensures compatibility with diverse tools.Motor The Siemens electric motors, hailing from Germany, are renowned for their exceptional energy efficiency and energy-saving performance. These motors not only boast powerful starting torque and excellent operational performance but also feature low noise and low vibration characteristics, ensuring high reliability. Additionally, their power ratings and mounting dimensions adhere to the standards of the International Electrotechnical Commission (IEC), making operation easy and maintenance convenient. Through our customized services, we can adjust the output power and voltage configuration of the equipment based on the specific requirements of the customer's region.
Hydraulic System
Our machines feature top-of-the-line hydraulic valves from the prestigious Rexroth brand. These valves are designed to handle high pressure efficiently, ensuring durability while requiring minimal upkeep.Designed for continuous performance under rated loads, our machines boast a robust hydraulic system that maintains stability and precision-all without any leaks.Throughout their operation, our machines can execute multiple functions with ease: rapid descent, slow descent, bending at operational speeds, swift return to starting position, and an immediate emergency stop for the ram.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.

---
