Blow Molding Machine for Plastic Bottle

Product Description

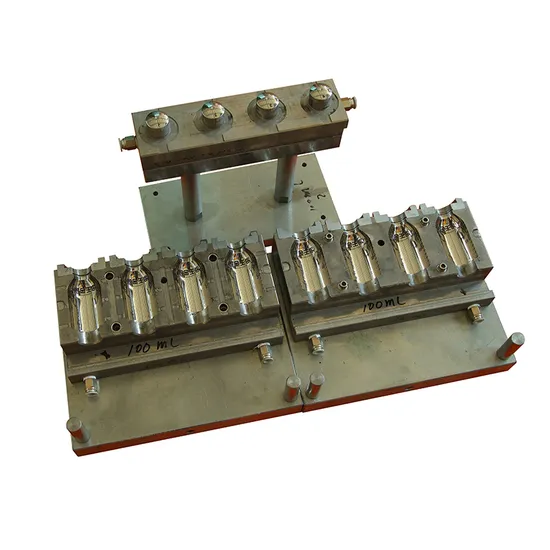

4 Cavity Blow Molding Machine for Plastic Bottle
By structure optimization and technicial innovation, Cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series of blowing machines.
ZQ-M series PET blowing machines are double-purpose blowing machines. According to different tpes of preforms, users can choose different operation method flexibly. For ordinary preforms, the machine can runs full automatically with preform auto-loader. For special preforms, they will be loaded manually. Its multiple use and low cost will save you much.
ZQ-M series of blowing machines can produce different shapes of 0.6L, 2.0L, 5L and 10L carbonated, mineral, pesticide, cosmetics, wide-mouth and other plastic PET/PP containers.
They have all the advantages of ZQ-A series of blowing machines: Low rejection rate, high speed, stable running and easy operation.
ZQ-M600-4 Speed: >=4500bottles/hour.
Settings One.
A). PLC colour display: OMRON(Japan)
B). Pneumatic parts: FESTO(Germany)
C). Controller of preform transfer: Servo motor DELTA(Taiwan)
D). Other electric parts are all world-famous brand
PET Blow Moulding Machine,equipment information.

TYPE	ITEM	ZQ-M600-1	ZQ-M600-2	ZQ-M600-3	ZQ-M600-4
CONTAINER	Number of cavity	1	2	3	4
	Output	1200-1500 pcs/hr	2000-2300 pcs/hr	3000-3300 pcs/hr	4000-4500 pcs/hr
	Max.container volume	0.6L	0.6L	0.6L	0.6L
	Max.neck diameter	38mm	38mm	38mm	38mm
	Max.container diameter	60mm	60mm	60mm	60mm
	Max.container height	260mm	260mm	260mm	260mm
ELECTRICAL SYSTEM	Number of lamp	14pcs	28pcs	32pcs	32pcs
	Max.heating power	12kw	22kw	32kw	48kw
	Installation power	14kw	25kw	35kw	52kw
	Actual power consumption	9kw	14kw	20kw	32kw
AIR SYSTEM	Operatating pressure	8kg/cm²	8kg/cm²	8kg/cm²	8kg/cm²
	Low pressure consuming	800Ltr/min	1000 Ltr/min	1200 Ltr/min	1400 Ltr/min
	Blowing pressure	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²
	High pressure consuming	1200-1600Ltr/min	1500-2000Ltr/min	2000-2500Ltr/min	2500-3000Ltr/min
CHILLER WATER	Operating pressure	8-10 kg/cm²	8-10 kg/cm²	8-10 kg/cm²	8-10 kg/cm²
	Temperatuer	10°C	10°C	10°C	10°C
	Consuming	3600kcal/hr	5600kcal/hr	7600kcal/hr	8800kcal/hr
	Flow rater	20Ltr/min	30Ltr/min	40Ltr/min	50Ltr/min
MACHINE	Machine dimension	2.5×1.4×1.7(m)	2.9×1.55×1.8(m)	3.4×1.4×1.8(m)	3.95×1.65×1.85(m)
	Machine weight	1.7T	1.8T	2.1T	2.5T

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
