Multi Wire Saw CA400 Silicon Nitride Cutting Machine

US$48,000.00-200,000.00 1 set (MOQ)

Basic Info.

Model NO.
CA400
Condition
New
Certification
CE, ISO 9001: 2015
Automation
Automatic
Suitable for
Alloy, Sapphire, Quartz Crystal, Silicon, Magnets
Maximum Worksize
125X125X260mm
Maximum Running Speed
900m/Min
Test Cut
Provide Test Cut Service
Dimension
3100X1490X2360mm
Weight
4000kg
Transport Package
Wooden Case
Trademark
LiKai
Origin
China
HS Code
8464109000
Production Capacity
350sets/Year

Product Description

Product Description

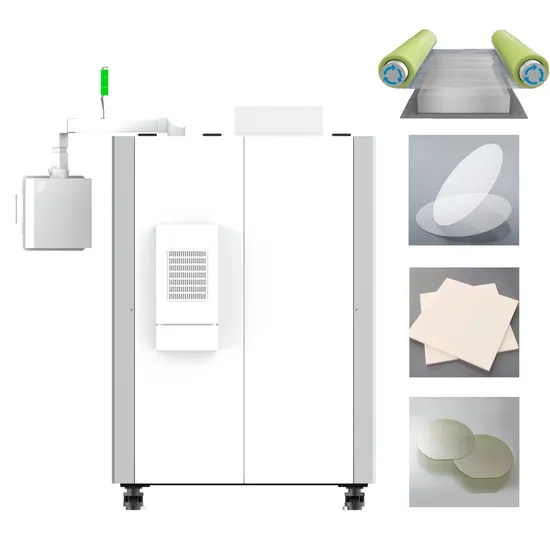

CA400 Multi-wire Saw
CA400 Multi-wire Saw is designed to meet customers' demands for batch processing of Sapphire, Quartz Crystal, Special Ceramics, Silicon Nitride and other super hard and brittle materials into straight sheets. The machine can reduce the cutting area through workpiece swing to improve cutting speed. Show economy and practicality while ensuring processing efficiency, operational stability and process applicability.
Product Features
>Easy Installation
The rollers adopt double-cone positioned structure for convenient installation and disassembly.
>Optimized Pulley Design
8 pulleys design can reduce wire breakage rate and achieve convenient wire winding.
>Swing Cutting
Stronger cutting force with swing cutting.
>Underside Workbench
Underside workbench for convenient operation.
>Easy Operation
The cutting room is open on 3 sides for easier operation and maintenance.
>Wire Break Memory System
Cut Samples

Product Parameters
DetailParameter
ModelCA400
Maximum work sizeφ125x260mm
Workbench qty1
Roller out diameter *Workable width(φ145±10mm)*266mm*3
Wire diameterφ0.12mm-φ0.25mm
Wire Spool Storage20km(φ0.25mm)
Maximum running speed900m/min
Travel of workbench lifting30mm
Workbench swing±7°
Cutting methodVertically upward movement
Cutting feed speed0.1-99.9mm/min
Cutting fluidWater--based cutting fluid or cutting Oil
Fluid storage220L
Fluid flow rate200L/min
Power SupplyThree-phase 380V 50Hz
Rated power30kw
Air supplyAdopting water-based cutting fluid, the air pressure is ≥ 0.35MPa.
SizeL*W*H3100mm*1490mm*2360mm
Weight4000Kg
About Us
FAQ
1. What Materials Could The Multi-Wire Saws Cut?
Our multi-wire saws can cut all kinds of hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Magnets, Ceramics, Silicon Wafers, Silicon Carbide, Precious Metal, etc.
2. What's The Size Range Of The Cut Product?
The maximum diameter of the cut material is up to 1000mm.
The minimum thickness of the wafers after cutting is 0.1mm.
3. What's The Cut Accuracy Of Multi-Wire Saws?
±10μm. It's subject to the cut material, please consult us for actual data.
4. Which Countries The Equipments Have Been Exported To?
The USA, UK, Russia, Japan, Brazil, Korea, India, Singapore, Taiwan of CHINA.
