| US$6,700.00 | 1 Piece (MOQ) |

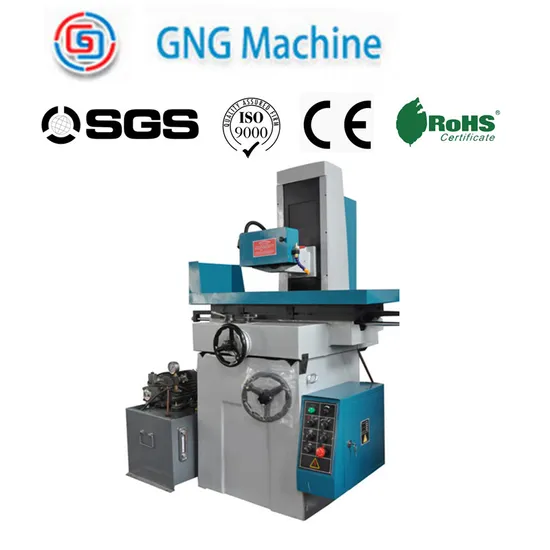

| Characteristics of machine tools: Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greenhouse, and equipped with a completely waterproof mazy design , in order to ensure the service life and the grinding of bearing surface roughness .Which marching with ball screw. It has the advantages of compact structure, easy to operate. A longitudinal guide rail worktable adopts rolling guide, rope wheel traction, light and flexible | ||||
| Technical Parameters | Unit | M1022 | ||
| Table maximum cutting area (L × W×H) (××) | mm | 560×250×490 | ||
| Working table movement | Max. Grinding Length | mm | 560 | |
| Max. Grinding width | mm | 250 | ||
| Distance From Table Surface To Spindle Center | mm | 490 | ||
| Slide way | V-type Double rail with Steel-ball V | |||
| Maximum work load | Kg | 250 | ||
| Table size | mm | 500×250 | ||
| Number of T -Slot T | mm×n | 14×1 | ||
| Table speed | m/min | 3 23 | ||
| Front and rear wheel feed | mm | 0.02/Graduation2.5/revolution 0.02/ 4/ | ||
| On the hand wheel feed | mm | 0.01/Graduation1.25/revolution 0.01/ 2/ | ||
| Wheel Size(dia×width×bore) (×× ) | mm | 200×20×31.75 | ||
| Spindle speed | 50Hz | rpm | 2850 | |
| Variable frequency motor (matching) () | 0-6000 | |||
| Spindle motor | Kw | 1.5 | ||
| Cooling pump | Kw | 0.4 | ||
| Packing Size (L×W×H) (××) | mm | 1280×1250×1880 | ||
| Cross,Net , | T | 1.1, 1.0 | ||
