US$1,000.00-2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Construction
Transmission
Hydraulic Transmission
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Engine Pattern
Verticaj, Water Cooled, 4 Stroke, Dir Injection
Dimsion
4060*2050*;2790mm
Engine Hood
as Requirements
Color
Yellow Ore as Requiments
Tire Size
as Requirements
Attachment
as Requirement
Transport Package
No Package
Specification
CE, ISO9001
Origin
Qingzhou City, Shandong Province, China

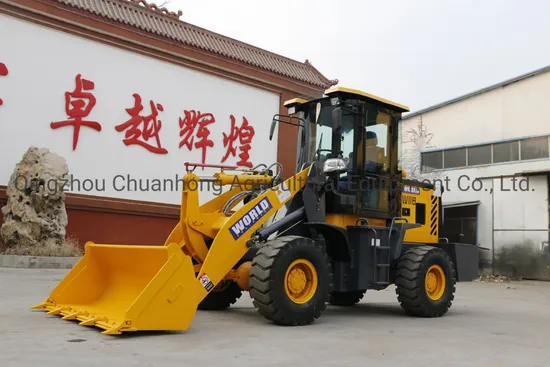

Product Description
Main features
--Originated from Komatsu technology, high reliability and productivity,
--Torque converter and counter-shaft transmission gearbox- Komatsu technology, higher reliability and easier maintenance,
--Fully hydraulic steering system, power shift transmission, easier operation,
--Bucket can be leveled automatically, optimized working device, higher productivity,
--Comfortable operation environment, new design cabin, Grimmer seat
-Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different needs
--With A/C
| Rated weight | 1800Kg |
| Rated capacity | 1.03m3 |
| Operating weight | 4000kg |
| Wheel base | 2100mm |
| Tread | 1260mm |
| Max. breakout force | 43KN |
| Max. dumping height | 3200/3700/4500mm |
| Dump distance | ≥930mm |
| Total time | 9s |
| Transportation | 4060×2050×2790mm |
Engine
| Model | WEICHAI HUAFENG ZHBG41 |
| Pattern | Vertical, water-cooled, 4-stroke, direct injection |
| Rated power/speed | 47kw/2400rpm |
| Max. torque | 270N.m |
| Normal fuel consumption | 258g/kw.h |
| Total displacement | 3.76L |
| Fuel | 0# or 10# diesel oil |
Torque converter and transmission system
| Model of torque converter | YJ265 |
| Pattern | 3-element single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward, 1 reverse |
| Max. travel speed | 38km/h |
| Axle | WANGDA |
| Main reducer pattern | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Planet gear moderation of single |
Tire
Steering system
| Pattern | Articulated and hydraulic steering |
| Min. turning radius(outside of bucket) | 3500mm |
| Max. turning angle | 35°±1 |
Implement hydraulic system
| Implement pump | CBG1045 |
| Distribution device model | DF15.2C |
Brake system
| Brake type | Air assisted oil disc on four wheel |
| Parking brake type | Soft axle control, outside bunch drum type |
Detailed photos
>>
