Zyx45 Compressed Oxygen Self-Rescue Portable Self Contained Mining Self Rescuer

Product Description

Product Description

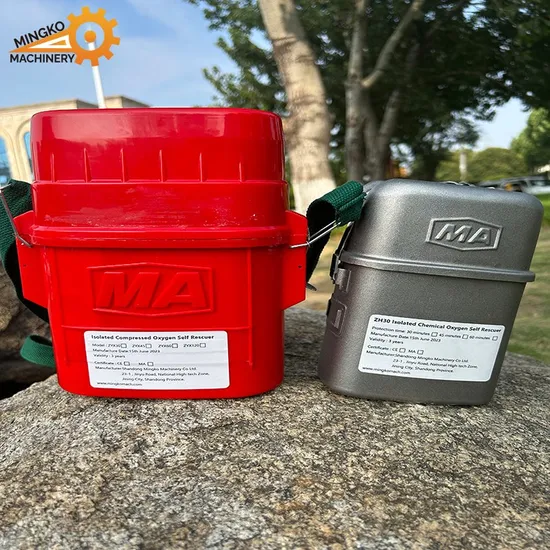

The self-rescuer is an isolated and regenerative self-rescuer with compressed oxygen as the gas source. The human respiratory system is isolated from the outside world, which can prevent various toxic and harmful gases from entering, and can be used when people in distress escape. The self-rescuer has three oxygen supply modes, quantitative oxygen supply, automatic oxygen supplement and manual oxygen supplement. Make performance more reliable and stable. It has the characteristics of small size, light weight, and convenient carrying (the non-metallic material of the shell meets the requirements of the GB3836.1-2000 standard).
Specification

Model	ZYX30	ZYX45	ZYX60	ZYX120
Rated protection time	30min	45min	60min	120min
Oxygen bottle volume	≥0.35L	≥0.40L	≥0.70L	≥1.2L
Oxygen storage	60L	80L	140L	240L
Oxygen pressure	20Mpa	20Mpa	20Mpa	20Mpa
Balloon volume	>4L	>4L	>4L	>4L
The amount of calcium hydroxide filling	400g	530g	700g	1250g
Product dimensions	160x85x215mm3	190x90x215mm3	205x127x240mm3	205x127x347mm3
Product weight	2.0kg	2.2kg	3.1kg	4.8kg

Detailed Photos
clench your teech into your pads and close your lips The oxygen tank is equipped with relief valve and security valve, which makes it safe to use.

The product applies ABS engineering plastics Air pressure plate
as the outer cover which is very tough
and will not get rusty
Application scenarios
Packaging & Shipping
ZH Chemical oxygen self-rescuer is a self-rescuer that generates oxygen through a chemical reaction. None reusable. Mainly used in coal mines or ambient air pollution and toxic gases occurring hypoxic choking hazard, the site quickly worn to protect people fleeing the disaster area normal breathing. Oxygen generating process main reaction equation is: The chemical oxygen self-rescuer is a personal respiratory protection device designed using the principle of chemical oxygen. The respiratory protector is isolated from the outside air. The breathing method is reciprocating and the use is not restricted by the surrounding toxic gases 2KO2+H2O→2KOH+1.5 O2+heat 2KOH+CO2→K2CO3+H2O+heat

Item	ZH30	ZH45	ZH60	ZH120
Protection time	>30min	>45min	>60min	>120min
Suction pressure	≤1200Pa	≤1200Pa	≤1200Pa	≤1200Pa
Weight	1.5KG	2KG	2.5KG	3KG

Reliable Performance: 1 Oxygen generation rate is stable ,less dust ,stable performance 2 Quick Oxygen Generation,security and reliable 3: Replaceable Leather Case ,long use time ,reusable cost reduction
