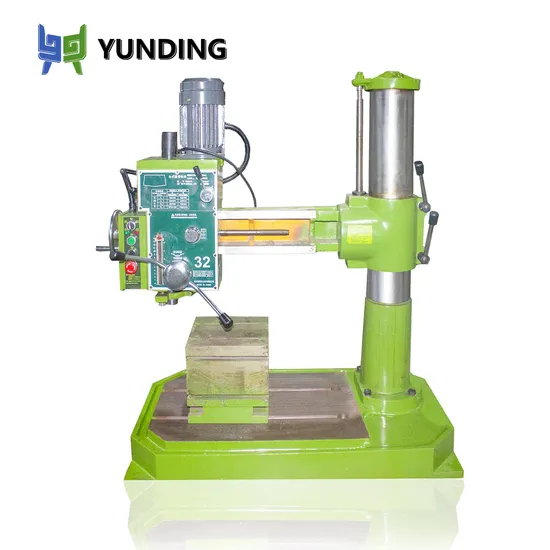

Vertical Hydraulic Clamping Drill Press Z3032X10 Metal Drill Radial Arm Drilling machine

Product Description

Product Description
Vertical Hydraulic Clamping Drill Press Z3032X10 Metal Drill Radial Arm Drilling Machin
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

Main technical parameters	Specifications	Units	Z3032X10
	Max. drilling diameter	mm	φ32
	Distance spindle nose and working surface of base	mm	320-1080
	Distance from spindle axis to column	mm	270-885
	surface
	Column diameter	mm	200
	Worktable size	mm	475x330x295
	Spindle travel	mm	150
	Spindle taper		MT4
	Spindle speeds range	r/min	65-1000(6 steps)
	Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
	Rocker rotary angle	°	±90°
	Main motor power	kw	1.5/2.2
	Lifting motor power	kw	0.75
	Net weight	kg	1080
	Overall dimensions(L×W×H)	mm	1400×640×2150

we are the most professional in making radial drilling machine
Realistic photos
Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
