1.5kw Fiber Laser Cutting Machine Small Size Laser Cutting Machine

Product Description

1.5kw fiber laser cutting machine Small Size Laser Cutting Machine

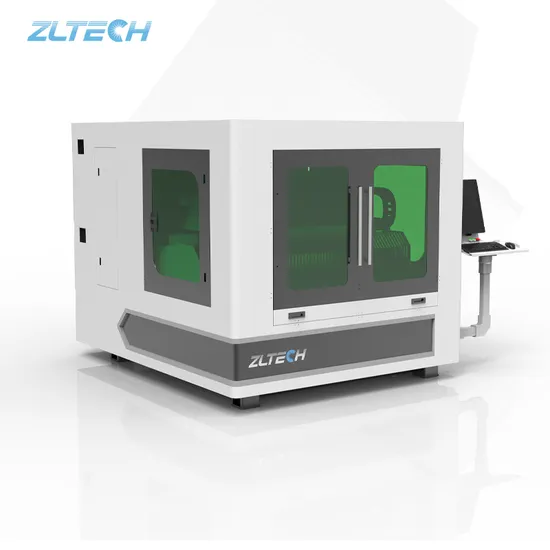

The ZL-1390D small laser cutting machine, compared to regular laser cutting machines, boasts higher precision and excels in cutting high-reflective materials with smaller kerfs and no burrs, thereby reducing the cost of secondary processing.
This machine is capable of cutting not only high-reflective materials like brass, bronze, gold, silver, and aluminum alloys but also common metals such as carbon steel, stainless steel, and silicon steel.
Precision laser cutting machines are commonly employed in applications where cutting accuracy and surface quality are crucial, such as jewelry making, precision electronics, precision components, medical devices, decoration, sheet metal fabrication, molds, hardware, and other industries.

Parameters
Model	ZL-1390D
Cutting Area	1300mm*900mm
Laser Power	1000w/1500w/2000w/3000w/6000w/8000w
Cutting Material	Metal
Laser Source Brand	Max / Raycus / IPG / JPT
Water Chiller Brand	Hanli / S&A / DVT
Servo Motor Brand	Japan Fuji
Position Accuracy	±0.02mm
Repeatability Accuracy	±0.02mm
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Acceleration	0.8G/1.0G/1.5G/2.0G/4.0G
Certificate	CE/ISO/FDA
Customized	OEM/ODM
Voltage	3 phase 380v 50HZ / 60HZ (customized)
Installation Instruction	Yes.Instructions and videos.

Machine Part Details

Auto Focus Laser Cutting Head
-Laser head with Built-in motor drive unit has automatic focus function, which can adjust the focus automatically according to the software setting, no need to adjust it by hand.
-It can shorten the perforation time, improve the perforation quality and cutting speed. It's simple, convenient and fast.
MAX Brand Laser Source
-It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line.
-Excellent material processing performance, high speed in thin sheet cutting and trong capability in thick material processing.
Conveyor Belt
The conveyor belt has the characteristics of good stability, high precision, light weight, compact structure and convenient
installation.
Automatic Oil Filling System for Lead Screw and Rack
-There is no need to manually refill oil regularly, ensuring the normal operation of the machine, protecting machine accessories and saving costs.
High-quality Nail Bed and Knife Strip
-When performing cutting tasks, due to the high energy of the laser, the blades and nail beds will be melted and damaged over time. Therefore, ZLTECH Laser increased the thickness of the blades and nail beds during production to extend their service life.
Controller
-We use FSCUT1000, FSCUT2000,etc. and CypCut or Cypone software.
-If you want to use another controller you needs, we support adjust configurations.
Cutting Sample Display
Materials :
Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium and other metal plates and pipes.
Industries :
Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery,engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.Cutting Thickness:
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power.
Other styles of products
Company Profile
ZLTECH laser is a R&D, manufacturing and sales enterprise who dedicated to providing global users with fiber laser industrial intelligent equipment and personalized customized design services.
The company's main products include metal fiber laser cutting machine, handheld laser welding machine and handeheld laser cleaning machine.To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 15 professional engineers.
We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.
ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
Customer Feedback
Packaging & Shipping
FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2.How long can delivery the machine ?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
3.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
4.How about the payment?
T/T, 30% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.

---
